Wuxi Smart CNC Equipment Group Co.,LTD sales@chinasmartcnc.com 86--13771480707
Product Details
Place of Origin: CHINA
Brand Name: SMART CNC
Certification: CE, ISO, TUV
Model Number: DW38NC
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: USD2500~USD60000
Packaging Details: Standard Export Packaging
Delivery Time: 35-50 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets/months
Material / Metal Processed: |
ALLOY, Aluminum, Brass / Copper, Carbon Steel, Stainless Steel |
Applicable Industries: |
Advertising Company, Building Material Shops, Construction Works , Energy & Mining, Machinery Repair Shops, Manufacturing Plant |
Marketing Type: |
New Product 2022 |
Video Outgoing-inspection: |
Provided |
Core Components: |
Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure Vessel |
Style: |
High-end |
After-sales Service Provided: |
Field Maintenance And Repair Service, Free Spare Parts, Online Support |
Condition: |
New |
Bending Radius Range: |
15-200mm |
Warranty: |
3 Years |
Key Selling Points: |
Multifunctional |
Warranty Of Core Components: |
1 Year |
Type: |
Hydraulic Bending Tools |
After Warranty Service: |
Online Support, Video Technical Support |
Material / Metal Processed: |
ALLOY, Aluminum, Brass / Copper, Carbon Steel, Stainless Steel |
Applicable Industries: |
Advertising Company, Building Material Shops, Construction Works , Energy & Mining, Machinery Repair Shops, Manufacturing Plant |
Marketing Type: |
New Product 2022 |
Video Outgoing-inspection: |
Provided |
Core Components: |
Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure Vessel |
Style: |
High-end |
After-sales Service Provided: |
Field Maintenance And Repair Service, Free Spare Parts, Online Support |
Condition: |
New |
Bending Radius Range: |
15-200mm |
Warranty: |
3 Years |
Key Selling Points: |
Multifunctional |
Warranty Of Core Components: |
1 Year |
Type: |
Hydraulic Bending Tools |
After Warranty Service: |
Online Support, Video Technical Support |

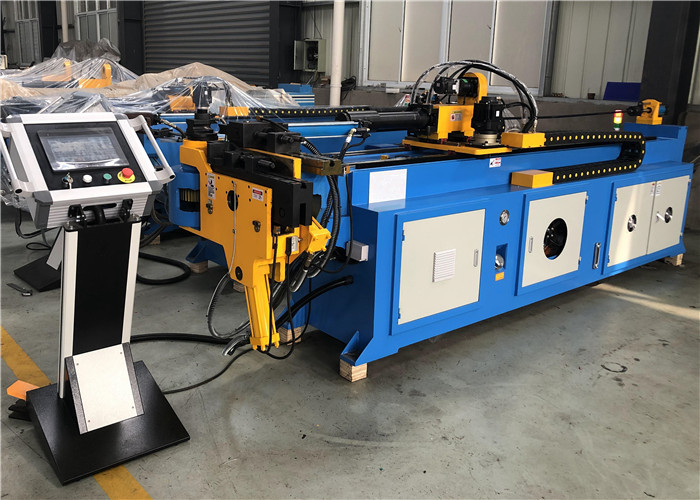

NC Control Tube Bender With Hydraulic Rotary Bending
Product Features
The NC series tube bender equipped with an NC control unit with Touch Screen Interface. SMART CNC NC series tube bender combines easy-to-use operation with cost-effectiveness. It is a practical semi-automatic solution for small to medium productions. Up to 16 programmable bends and length stoppers (Optional)
• NC control unit with Touch Screen
• Up to 16 programmable bends
• Easy operation interface and enable easy data input
• Large program capacity storage
• This tube bender built-in self-diagnosis & error messages on-screen display
• Hydraulic clamping with optional pressure die assist
• Suitable for various materials such as steel, stainless, aluminum, and copper
• Back support frame(Optional)
• Length Stoppers (Optional)
Product Description
| Brand Name: | SMART CNC |
| Model Number: | DW38NC/DW50NC/DW63NC/DW75NC/DW89NC/DW100NC/DW110NC/DW114NC/DW130NC/DW168NC/DW189NC/DW219NC |
| Type | NC CONTROL SEMI-AUTOMATIC |
| Certification: | CE/SGS/TUV/ISO |
| Place of Origin: | China |
| Application | Pipes or solid bars, various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly, and then reinforced with plywood for outer packing |
Technical Parameters
| Model | Bending Capacity(Round Tube) | Bending Radius Range | Mandrel Length | Max Bending Angle | Bending Accuracy | Pump Power | Program Unit | Max Pressure | Hydraulic System Control | Oil Tank Capacity | Machine Weight | Machine Size |
| 38NC | Ø38X2mm | 15-200mm | 1600mm | 190° | ±0.1° | 4KW | 16X16 Group | 12MPa | Electromagnetic Valve | 120L | 760KG | 2600X600X1000mm |
Our services
Pre-service:
1. We will help you confirm the model of our machine according to your offered pipe information.
2. You are very welcome to see our machine how to work in the factory before you place an order with us.
Aftersales-service:
1. Our machine is easy to use. Operation manual and teaching video will be sent out with machine. We also offer free training in our factory, the following is our training contents: Detailed function of our machine, 1 hour; NC control using, 0.5 hour; Tooling installation and adjustment, 0.5-1 hours; Maintenance and repair, 0.5-1 hours; Real operation according client products, 1-2 hours. During the training period,we offer free pick-up,hotel and food.
2. We guarantee machine quality for 13 months, during this period, if spare parts of the machine are not man-made damage, we can send the component to the customer by DHL, TNT freely.
3. Our factory provide the service for the customer forever, if the customer need operation help,we provide 24 hours on-line reply service.
FAQ
1. How to choose the Pipe Bending Machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients, and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine.
3. How long warranty can you provide?
Our machine warranty is one year, and we use all the stable compoenents with long working life.
And we can also send our technician to do the after-sale service in client's factory.
4. What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine, you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop, after you are sure that the workpiece is good, then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order. During this period, you can also learn how to use this machine well.
