Wuxi Smart CNC Equipment Group Co.,LTD sales@chinasmartcnc.com 86--13771480707
Product Details
Place of Origin: CHINA
Brand Name: SMART CNC
Certification: CE, ISO, TUV
Model Number: M18CNC -3A-1S -4A-3S -5A-2S -5A-3S
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD5000~USD100000
Packaging Details: Standard export packaging
Delivery Time: 45-60 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/months
Material/Metal Processed: |
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum |
Max. Bending Angle (Deg): |
190° |
Bending Precision (Deg): |
+/-0.1 |
Automation: |
Automatic |
Condition: |
New |
Machine Type: |
CNC Pipe Bending Machine |
Application Industries: |
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Construction Works, Energy And Mining, Etc. |
Core Components: |
Bearing, Motor, Gear, PLC, Pressure Vessel, Gearbox |
Warranty: |
3 Years |
After Warranty Service: |
Video Technical Support, Online Support, Spare Parts |
After-sales Service Provided: |
Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Vedio Technical Support |
Advantage: |
High Capacity |
Material/Metal Processed: |
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum |
Max. Bending Angle (Deg): |
190° |
Bending Precision (Deg): |
+/-0.1 |
Automation: |
Automatic |
Condition: |
New |
Machine Type: |
CNC Pipe Bending Machine |
Application Industries: |
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Construction Works, Energy And Mining, Etc. |
Core Components: |
Bearing, Motor, Gear, PLC, Pressure Vessel, Gearbox |
Warranty: |
3 Years |
After Warranty Service: |
Video Technical Support, Online Support, Spare Parts |
After-sales Service Provided: |
Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Vedio Technical Support |
Advantage: |
High Capacity |

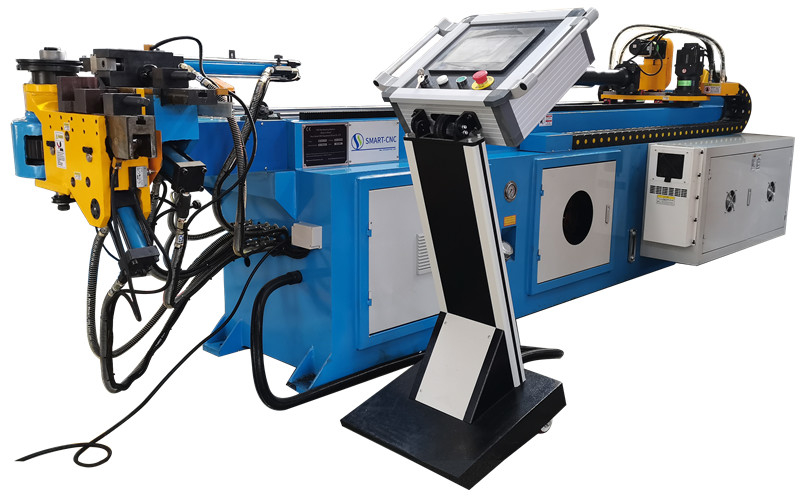

CNC Fully Auto Electric Hydraulic Mandrel Bender Round Square Steel Metal Chair Future SS MS Pipe Bending Machine
Product Description
1. Bending pipe with servo motor drive, high precision bending angle and compensation value (3 axis or more).
2. Corner and feeding is drived by servo motor, high efficiency, accurate bending angle and feeding.
7. SZ-SLS CNC Hydraulic Automatic Pipe Bending Machine Equipped with PLC or IPC Which Manage Bending (Y), Feeding (X) &
8. Rotation (Z) In a Complete Automatic Cycle.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
9. We Only Use Popular Quality Components In The Production of Our Benders From Such Companies As JAPAN MIYSUBISHI, TAIWAN, WEINVIEW, JAPAN YUKEN, JAPAN NEIMICOM, SKF AND ETC.
10. This Value Priced CNC Tube Bending Machine Is An Excellent Choice for General Purpose and Any Type of Conventional Tube Bending Applications.
Features on CNC Hydraulic Automatic Pipe Bending Machine
* Interactive PLC Touch Screen Offers Easy Access to Auto and Manual Operating Modes.
* System Diagnostics and Multiple Language Capability.
* Fully Hydraulic Clamping on Clamp Die and Pressure Die.
* Bending Axis-Driven by Cylinder or Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
* Equipped with Adjustable Speed Valve on Pressure Die Ensures the Synchronization of Bending.
* Air Cooling System or Water Cooling System Ensures the Equipment Long-Time Work Stably Under the High
Temperature.
* CE, ISO &TUV.
Specification
| Model |
M18CNC -3A-1S -4A-3S -5A-2S -5A-3S |
| Bending Capacity | Ø18X2mm |
| Range of Bending Radius | 5-80mm |
| Max. Bending Degree | 190° |
| Mandrel Length | 1500mm |
| Touch Screen |
Taiwan Weinview |
| Bending Accuracy | ±0.1° |
| Rotating Accuracy | ±0.1° |
| Feeding Accuracy | ±0.1mm |
Application Industry
| Furniture | Boiler | Exhaust | Shipyard /oil rig |
| Head rest | Heavy vehicle cabin | Green house | Health care |
| Aerospace/aviation | Serpentine bending | Fitness | Brake line |
