Automatic Hydraulic 3d Cnc Pipe Bending Machine Tube Bender
Product Overview

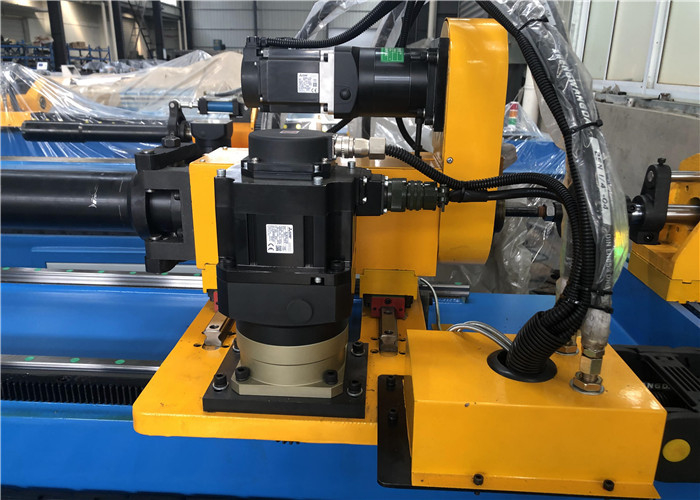

1. Bending-Auto driven by hydraulic, Rotaion-Auto by servomotor, Feeding-Auto by servomotor
2. Pneumatic movement of machine------clamp, pressure clamp, clutch, mandrel (High speed)
3. Automatic lubrication system of machine head and mandrel
4. X,Y,Z transferred to YBC which is convenient for user
5. Different tooling design customized for user
6. Anticipated Mandrel Extraction good for tube of very small thickness
7. Reclamp function suitable for tube length without limitation
8. Optional function ------punching hole, cutting, multiple radius, roll bending, etc
9. Standard tooling including clamp die, wiper die, mandrel, pressure die, bend die
10. Seperate oil tank with oil filter--easy for cleanning
11. Option control system----Industrial computer with function of 3D simulation, 3D view, inch input, drawing input, remote control
Product Specifications
| Parameters | |
| Model |
M50CNC -2A-1S -3A-1S -4A-3S -5A-2S -5A-3S |
| Bending Capacity | Ø50X3mm |
| Range of Bending Radius | 15-260mm |
| Max. Bending Degree | 190° |
| Mandrel Length | 2800mm |
| Touch Screen |
Taiwan Weinview |
| Bending Accuracy | ±0.1° |
| Rotating Accuracy | ±0.1° |
| Feeding Accuracy | ±0.1mm |
Application Industry
| Furniture | Boiler | Exhaust | Shipyard /oil rig |
| Head rest | Heavy vehicle cabin | Green house | Health care |
| Aerospace/aviation | Serpentine bending | Fitness | Brake line |
FAQ
1. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Max. outside diameter:
- Wall thickness range:
- Bending radius (CLR):
- The pipe material:
- The drawings if possible:
2. Q: What is the difference for NC, NCBL and CNC machines?
A: NC is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic. NCBL is semi-automatic pipe bending machines, mechanical gear feeding, servo motor automatic angle rotation
and hydraulic automatic bending.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius (CLR).
3. Q: What is the machine's control?
A: Standard control is Mitsubishi PLC, Special is IPC controls. IPC with function of 3D view, DXF readout, remote assistance etc.
4. Q: What is the biggest bending capacity you could offer?
A: As of now the biggest bending capacity is 325mm outside diameter for cold bending.
A: Our factory is located in Zhangjiagang city (near Wuxi).You can fly to Shanghai or Wuxi airport & train station.
5. Q: What is the certificates available?
A: CE & ISO9001
6. Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service , or we can send our professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals, and USD150 per day.
