Product Details
Place of Origin: CHINA
Brand Name: SMART CNC
Certification: CE, ISO, TUV
Model Number: M63CNC -2A-1S -3A-1S -4A-3S -5A-2S -5A-3S
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: USD3800~USD98600
Packaging Details: Standard Export Packaging
Delivery Time: 45-55 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 SETS PER MONTHS
Material / Metal Processed: |
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum |
Key Selling Points: |
Automatic |
Core Components: |
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox |
Machinery Test Report: |
Provided |
Applicable Industries: |
Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works, Energy And Mining |
Condition: |
New |
Bending Precision (Deg): |
+/-0.1 |
Applicable Shape: |
Round, Square, Rectangle, Oval, Profile |
Control: |
PLC Or Touch Screen |
Cooling System: |
Water Or Fan Cooling |
Voltage: |
Customized |
Drive Mode: |
Electric + Servo/Hydraulic |
Material / Metal Processed: |
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum |
Key Selling Points: |
Automatic |
Core Components: |
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox |
Machinery Test Report: |
Provided |
Applicable Industries: |
Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works, Energy And Mining |
Condition: |
New |
Bending Precision (Deg): |
+/-0.1 |
Applicable Shape: |
Round, Square, Rectangle, Oval, Profile |
Control: |
PLC Or Touch Screen |
Cooling System: |
Water Or Fan Cooling |
Voltage: |
Customized |
Drive Mode: |
Electric + Servo/Hydraulic |

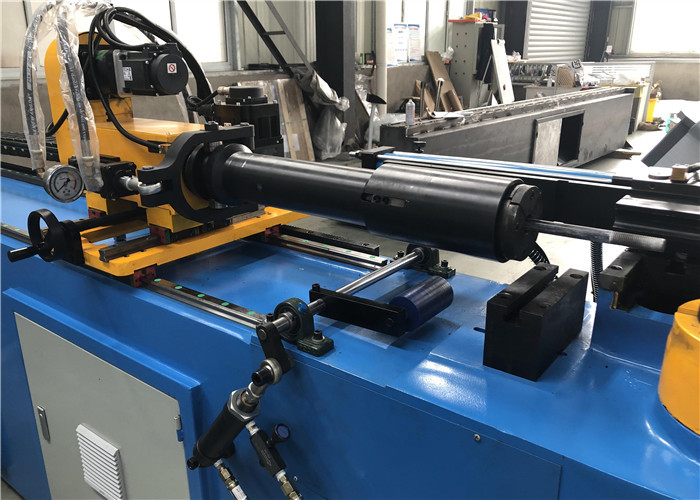

Long Throat Bending Machine For Chair 3D Chair Frame Pipe Bending Machine Cnc Mandrel Pipe Bending Machine
Product Description
Long Throat Bending Machine For Chair 3D Chair Frame Pipe Bending Machine Cnc Mandrel Pipe Bending Machine
- It is fully automatic pipe bending machine, with PLC control system, two servo for rotary, feeding.
- Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual, semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.Multi axes working simultaneously.
- Bending pipe — Automatic. Rotating pipe — Automatic. Feeding pipe — Automatic.
- One key back up of programs for USB or disk storage or through INTERNET. Management and storage of bend data and tools is done in standard text files on the hard disk of the control PLC. In case of requirement it is also possible to integrate the PLC into bending machine. Therefore an Ethernet adapter is included. The number of tools and products is practically unlimited. Product and tool files can easily be edited (also on a separate PLC) and printed out.
- Security code for protection data setting and selected operation features of pipe bending machine.
- To access to history bending setting data to facilitate study of malfunction with one set of tooling.
- All parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
- CNC fully auto, have cubical space bending equipment, loading whole bending process is automatic.
- The machine is convenient operation, stable performance and high safety factor. Our JOBEST MACHINERY Pipe bending machine is ideal choice for pipe processing.
- CE, ISO9001, SGS Certification for our pipe bending machine
Product Specifications
| Model |
M63CNC -2A-1S -3A-1S -4A-3S -5A-2S -5A-3S |
| Bending Capacity | Ø63X3mm |
| Range of Bending Radius | 25-270mm |
| Max. Bending Degree | 190° |
| Mandrel Length | 3000mm |
| Touch Screen |
Taiwan Weinview |
| Bending Accuracy | ±0.1° |
| Rotating Accuracy | ±0.1° |
| Feeding Accuracy | ±0.1mm |
Application Industry
| Furniture | Boiler | Exhaust | Shipyard /oil rig |
| Head rest | Heavy vehicle cabin | Green house | Health care |
| Aerospace/aviation | Serpentine bending | Fitness | Brake line |
|
Option (Multi-function in one machine) |
|||
| Left and right direction bending | Pushing / Rolling | Robot hand | Auto punching |
| Auto cutting | Auto welding seam detection | Auto loading | Auto unloading |
| Infrared safety fence | Production line | Booster | Bend Nylon tube |
When bending pipe using a pipe bender, the user must pull down the handles on the pipe bender. This action forces the pipe to bend around the former/shoe, following the shape of the roller, producing a bend.
It is not recommended to bend a tube with a pipe bender because a tube is measured by the outside diameter, whereas a pipe is measured by the inside. It is important to use tube bending equipment to bend tubes, and pipe bending equipment to bend pipes, in order to reach an accurate bend.
A hydraulic pipe bender can be used to bend metal pipes, to acute angles accurately. Hydraulic pressure is used to bend thick-walled pipe and conduit, without the piping wrinkling. High-pressure oil is used to provide a powerful but controlled thrust, which bends the pipe accurately.
The main purpose of pipe bending is to manipulate piping to bend in different shapes and directions. A number of industries and trades require pipe bending services. Some of these include the plumping industry, electrical conduit piping, architects, marine and mechanics.
