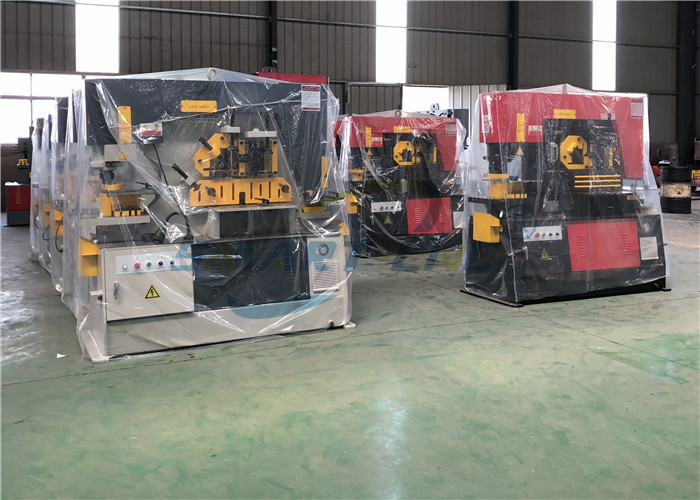

Iron Worker Q35Y-30 Punching Machine Bending Machine Universal Hydraulic Iron Worker
1. Introduction to the structure and properties:
1. Q35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.
2. SanxinIndustrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come
3. The machine by the European Union CE certification and ISO quality system certification
2. Hydraulic system:
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from
2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
3. Being able to work under rated load continuously,stable working and high precision.
3. Machine Blade:
1. The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades SKD11 quality.
4. Electrical system and the safety interlock:
1. Electrical components are from European,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
3. Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation
Specification
| Model | Q35Y-12 | Q35Y-15 | Q35Y-16 |
| Pressure(Ton) | 45 | 55 | 60 |
| Max.cutting thickness(mm) | 12 | 15 | 16 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 |
| Cutting angle(degree) | 7° | 7° | 7° |
| Shearing size of one stroke(mm) | 12x250 | 15x300 | 16x250 8×400 |
| Ram stroke(mm) | 60 | 60 | 80 |
| Cycles/min(20mm stroke)(mm) | 8 | 8 | 8 |
| Throat depth(mm) | 200 | 200 | 300 |
| Punching thickness(mm) | 12 | 15 | 16 |
| Max.Punching diameter(mm) | 22 | 24 | 25 |
| Power of main motor(kw) | 3 | 4 | 4 |
| Overall dimensions(L*W*H)mm | 1200x520x1500mm | 1320x590x1620mm | 1640x730x1770mm |
| Weight of machine(kg) | 1000 | 1400 | 1600 |
| Model | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 |
| Pressure(Ton) | 90 | 110 | 140 | 200 |
| Max.cutting thickness(mm) | 20 | 25 | 30 | 40 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 |
| Cutting angle(degree) | 8° | 8° | 8° | 8° |
| Shearing size of one stroke(mm) | 20x330 10×480 | 25x330 16×600 | 30x355 20×600 | 35x400 25×700 |
| Ram stroke(mm) | 80 | 80 | 80 | 100 |
| Cycles/min(20mm stroke)(mm) | 8 | 6 | 6 | 8-25 |
| Throat depth(mm) | 355 | 400 | 600 | 600 |
| Punching thickness(mm) | 20 | 25 | 26 | 35 |
| Max.Punching diameter(mm) | 30 | 35 | 38 | 41 |
| Power of main motor(kw) | 5.5 | 7.5 | 11 | 15 |
| Overall dimensions(L*W*H)mm | 1860x800x1900mm | 2355x960x2090mm | 2680x1040x2300mm | 2850x1300x2400mm |
| Weight of machine(kg) | 2500 | 4500 | 6800 | 9500 |
