Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE ISO TUV
Model Number: Q35Y-30
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 20 DAYS
Supply Ability: 60set/ month
Presure: |
160 Ton |
Plate Max Thickness: |
30mm |
Voltage: |
Customized |
Cutting Material: |
Carbon Steel, Stainless Steel |
Power: |
11KW |
Precision: |
High Precision |
Presure: |
160 Ton |
Plate Max Thickness: |
30mm |
Voltage: |
Customized |
Cutting Material: |
Carbon Steel, Stainless Steel |
Power: |
11KW |
Precision: |
High Precision |

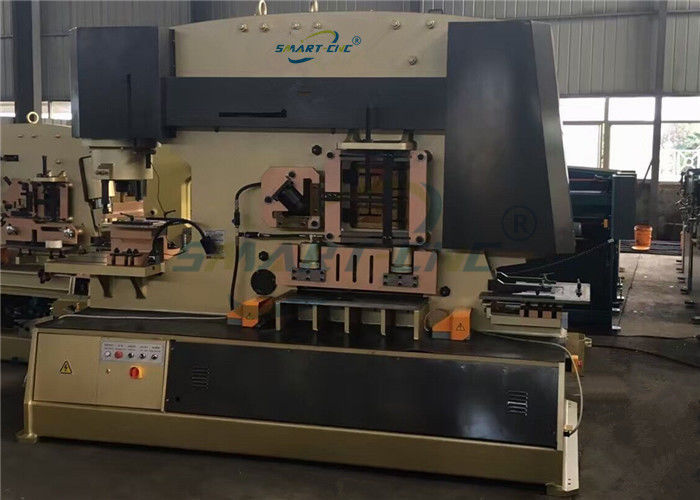

160 ton Iron Worker, Hydraulic Iron Worker Machine, Sheet Metal Iron Worker Q35Y-30
Q35Y Series Hydraulic Iron Worker
1. Overall structure:
This machine adopts hydraulic driving system and they are the latest iron workers in China. Various metal plate, square bar, round bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting.
2. Advantage:
● This combined punching and shearing machine has punching & shearing angle & section function etc.
● This machine has light weight , small volume, low noise and high efficiency advantages etc, it is the best equipment of modern machinery manufacturing industry, bridge, electric power, communication etc;
● The best advantage for this machine: simple operation, flexible movement, high cutting efficiency, smooth section without a trace, low failure rate, long service life;
Specification
| Model | Q35Y-12 | Q35Y-15 | Q35Y-16 |
| Pressure(Ton) | 45 | 55 | 60 |
| Max.cutting thickness(mm) | 12 | 15 | 16 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 |
| Cutting angle(degree) | 7° | 7° | 7° |
| Shearing size of one stroke(mm) | 12x250 | 15x300 | 16x250 8×400 |
| Ram stroke(mm) | 60 | 60 | 80 |
| Cycles/min(20mm stroke)(mm) | 8 | 8 | 8 |
| Throat depth(mm) | 200 | 200 | 300 |
| Punching thickness(mm) | 12 | 15 | 16 |
| Max.Punching diameter(mm) | 22 | 24 | 25 |
| Power of main motor(kw) | 3 | 4 | 4 |
| Overall dimensions(L*W*H)mm | 1200x520x1500mm | 1320x590x1620mm | 1640x730x1770mm |
| Weight of machine(kg) | 1000 | 1400 | 1600 |
| Model | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 |
| Pressure(Ton) | 90 | 110 | 140 | 200 |
| Max.cutting thickness(mm) | 20 | 25 | 30 | 40 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 |
| Cutting angle(degree) | 8° | 8° | 8° | 8° |
| Shearing size of one stroke(mm) | 20x330 10×480 | 25x330 16×600 | 30x355 20×600 | 35x400 25×700 |
| Ram stroke(mm) | 80 | 80 | 80 | 100 |
| Cycles/min(20mm stroke)(mm) | 8 | 6 | 6 | 8-25 |
| Throat depth(mm) | 355 | 400 | 600 | 600 |
| Punching thickness(mm) | 20 | 25 | 26 | 35 |
| Max.Punching diameter(mm) | 30 | 35 | 38 | 41 |
| Power of main motor(kw) | 5.5 | 7.5 | 11 | 15 |
| Overall dimensions(L*W*H)mm | 1860x800x1900mm | 2355x960x2090mm | 2680x1040x2300mm | 2850x1300x2400mm |
| Weight of machine(kg) | 2500 | 4500 | 6800 | 9500 |
