Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE ISO TUV
Model Number: EB5-80/2500
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude
Delivery Time: 50 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 set/month
Bending Width: |
2500mm |
Pressure: |
800KN |
Motor: |
ABB |
Valve: |
Rexroth |
Electrical: |
Schneider |
Delivery Time: |
50 Days |
Warranty Time: |
Two Years |
Types: |
Torsion Bar |
Bending Width: |
2500mm |
Pressure: |
800KN |
Motor: |
ABB |
Valve: |
Rexroth |
Electrical: |
Schneider |
Delivery Time: |
50 Days |
Warranty Time: |
Two Years |
Types: |
Torsion Bar |

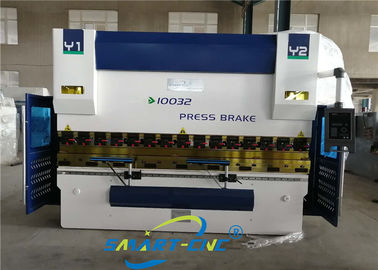

80 Ton Hydraulic NC Press Brake , Steel Bar Bending Machine 2 Axis For Sheet Metal Bending
Main Features:
1. Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
2. SMART CNC PRESS BRAKE is Equipped with the Estun user-friendly user interface,the E21 provides all main press brake functionality.
3. Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.
4. All tubes are connected by tube insertings to avoid oil lost and burst by welding tubes.
5. Ball screw and line guide was designed to improve precision.
6. E-Z fast wedge clamping was designed to change tools quickly.
7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
Standard Equipment:
1.System Intermediate Upper clamps with Anti Wedges
2.Plate Support Arms
3. Powered Depth Axis
4. Backstop
5. Light guards
6. Top and Bottom Tooling
7. Estun E21 NC control
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics
10. Hydraulic and Electrical overload protection
11. Squaring Arm and Front Support Arms
12. Delta inverter with ball screw and polished rod with 0.05 mm accuracy.
13. Side guard is standard meeting CE regulations.
Estun E21s NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
4.Spindle allowance offset
5.Internal time relay
6.Stock counter
7.Backgauge position display, resolution in 0.01mm
The best bending results You can bend longer and deeper parts with standard EB5-Bend Series.
WC67Y/WC67K Series Technical Parameters
| Model |
Nominal pressure (mm) |
Worktable length (mm) |
Distance between housings (mm) |
Throat depth (mm) |
Stroke (mm) |
Max. opening height (mm) |
Power (KW) |
Dimension LxWxH (mm) |
| 30T/1600 | 300 | 1600 | 1280 | 200 | 80 | 285 | 3 | 1600x1000x1600 |
| 35T/2000 | 350 | 2000 | 1480 | 200 | 80 | 285 | 4 | 2000x1100x1800 |
| 40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2200x1200x1910 |
| 40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500x1200x1910 |
| 50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500x1200x2000 |
| 63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 5.5 | 2500x1300x2210 |
| 63T/3200 | 630 | 3200 | 2500 | 250 | 100 | 320 | 5.5 | 3200x1300x2210 |
| 80T/2500 | 800 | 2500 | 1900 | 300 | 100 | 320 | 7.5 | 2500x1400x2300 |
| 80T/3200 | 800 | 3200 | 2500 | 320 | 100 | 350 | 7.5 | 3200x1500x2300 |
| 80T/4000 | 800 | 4000 | 3000 | 320 | 100 | 350 | 7.5 | 4000x1500x2400 |
| 100T/2500 | 1000 | 2500 | 1900 | 320 | 120 | 320 | 7.5 | 2500x1600x2400 |
| 100T/3200 | 1000 | 3200 | 2500 | 320 | 120 | 370 | 7.5 | 3200x1600x2600 |
| 100T/4000 | 1000 | 4000 | 3000 | 320 | 120 | 370 | 7.5 | 4000x1600x2700 |
| 125T/3200 | 1250 | 3200 | 2500 | 320 | 120 | 370 | 7.5 | 3200x1600x2600 |
| 125T/4000 | 1250 | 4000 | 3000 | 320 | 120 | 370 | 7.5 | 4000x1600x2700 |
| 160T/3200 | 1600 | 3200 | 2500 | 320 | 200 | 460 | 11 | 3200x1700x2700 |
| 160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000x1700x2800 |
| 160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000x1900x3100 |
| 160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 6000x1900x3200 |
| 200T/3200 | 2000 | 3200 | 2500 | 320 | 200 | 460 | 11 | 3200x1950x2800 |
| 200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000x1950x2800 |
| 200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000x1950x3000 |
| 200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 6000x1950x3300 |
| 250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 590 | 18.5 | 3200x2000x3200 |
| 250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 4000x2000x3400 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 5000x2000x3400 |
| 250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 6000x2000x3400 |
| 300T/3200 | 3000 | 3200 | 2530 | 400 | 250 | 590 | 22 | 3200x2000x3450 |
| 300T/4000 | 3000 | 4000 | 3000 | 400 | 250 | 590 | 22 | 4000x2000x3450 |
| 300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 590 | 22 | 5000x2000x3450 |
| 300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 590 | 22 | 6000x2000x3450 |
| 400T/4000 | 4000 | 4000 | 3000 | 400 | 250 | 590 | 30 | 4000x2180x3400 |
| 400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 590 | 30 | 5000x2180x3500 |
| 400T/6000 | 4000 | 6000 | 5000 | 400 | 250 | 590 | 30 | 6000x2180x3800 |
| 500T/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 45 | 5050x3500x3700 |
| 500T/6000 | 5000 | 6000 | 5000 | 400 | 320 | 590 | 45 | 6050x3500x3700 |
| 600T/4000 | 6000 | 4000 | 3000 | 400 | 320 | 590 | 55 | 4050x4500x3700 |
| 600T/6000 | 6000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6050x4500x3700 |
| 800T/6000 | 8000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6300x4500x6000 |
Note: No notice if any changes of the above statistics made.
