Product Details
Place of Origin: China
Brand Name: SMART
Certification: CE ISO TUV
Model Number: 1500
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Iron
Delivery Time: 10-20days
Supply Ability: 300sets/months
Shaping Mode: |
Forging |
Product Material: |
Skd11 |
Mould Life: |
80-100 Thousand Times |
Delivery Time: |
15 Days |
Warranty: |
16 Months |
Types: |
HACO |
Shaping Mode: |
Forging |
Product Material: |
Skd11 |
Mould Life: |
80-100 Thousand Times |
Delivery Time: |
15 Days |
Warranty: |
16 Months |
Types: |
HACO |

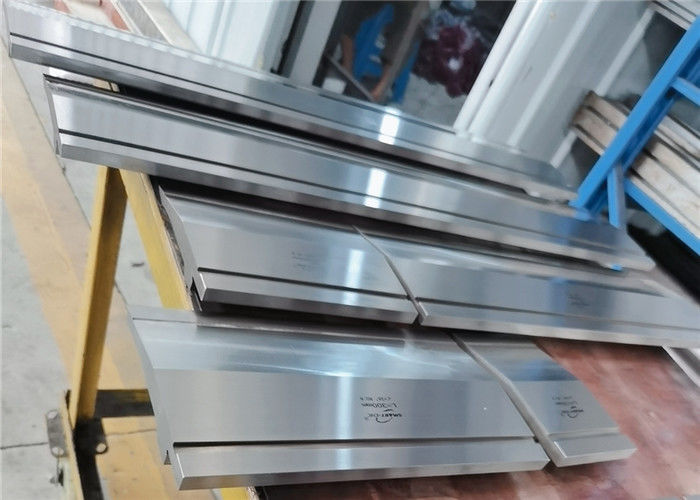

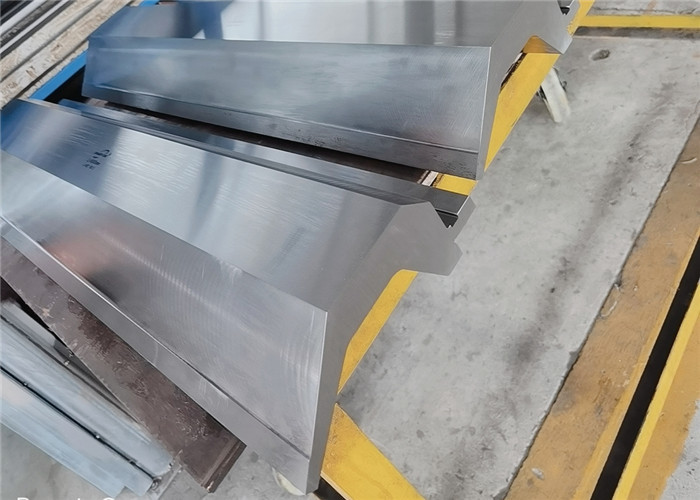

Goose Neck Punch For CNC Press Brake Tooling European Style Amada CNC Press Brake Tooling
Main Features:
1. Material
2. Forging
3. a, Miller Processing(if your products are small)
3. b, Planer Processing(if your products are large)
4. Precisional Grinder Processing
5. Finished Products
6. Measuring
7. Packing: Wooden crate with soft film layers inside
8. Delivery Details : Shipped in 20 days after payment
1) OEM and ODM service is accepted
2) Small orders accepted
3) Fast delivery and Safety package
4) High quality and Competitive price
5) Professional design and manufacture
6) Receiving many well comments and repeat orders
7) Our company press brake tooling&dies is Practical , Flexibility and Durability
8) Bending edge used high frequency heat treatment
9) We supply various press brake tools and shearing blade.
10) High accuracy with ground finish
11) High frequency quench and heat treatment
12) We are one of Chinese earliest professional manufacturers in this line
Can supply all the sheet metal machine parts: clamps, shearing blade and so on .
Forging mould for the tooling body
Holistic heat treatment for the whole tooling
Hardness reachs 48~52 HRC
Using the best material 42CrMo
Acute ,goose neck punch and single V die and 2V die
Wholesale press brake bending tools
| Material | 42CrMo=SCM440=42CrMo4=4140 |
| General Hardness | HRC47+/-2 |
| Surface Tolerance | 0.02MM |
| Sectioned | AVAILABLE |
| Supplying Brands | Amada,Tokyo,,LVD,YSD,Beyeler |
| OEM & ODM Service | AVAILABLE |
| Customize & Design Service | AVAILABLE |
The true standard length of the national diamond press brake die is:
Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.
The standard segmentation size is:
Upper model: 100 (left), 10,15,20,40,50,200,300,100 (right) =835mm (set)
