Product Details
Place of Origin: China
Brand Name: SMART
Certification: CE ISO TUV
Model Number: 5000
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Iron
Delivery Time: 10-20days
Supply Ability: 300sets/months
Shaping Mode: |
Forging |
Product Material: |
Skd11 |
Mould Life: |
80-100 Thousand Times |
Delivery Time: |
15 Days |
Warranty: |
13 Months |
Types: |
LVD AMADA |
Shaping Mode: |
Forging |
Product Material: |
Skd11 |
Mould Life: |
80-100 Thousand Times |
Delivery Time: |
15 Days |
Warranty: |
13 Months |
Types: |
LVD AMADA |

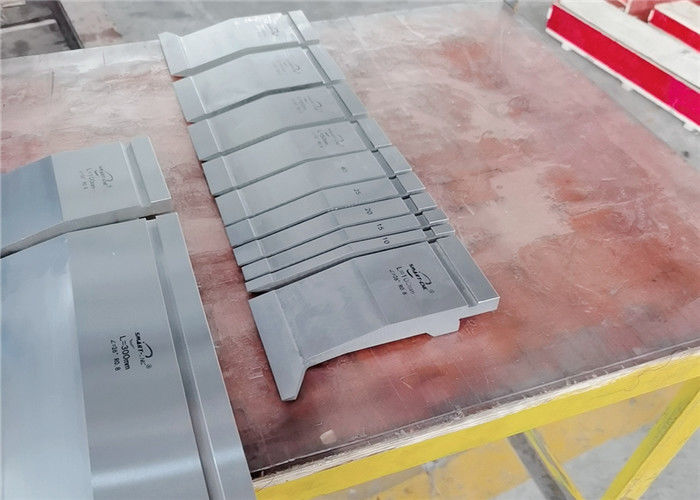

High Quality Press Brake Punches Tooling/Press Brake Die Amada Style Press Brake Tooling For Sale
Main Features:
High quality press brake punches tooling/press brake die
1) Manufacturing according to your special drawings
2) High accuracy with ground finish
3) High frequency quench and heat treatment
4) Small orders accepted
5) Long life and good sharpness
6) More than 17 year professional experience
7) Fast delivery and safety package
8) Competitive price
9) Always promise you our immediate reply and best service.
Can supply all the sheet metal machine parts: clamps, shearing blade and so on .
Forging mould for the tooling body
Holistic heat treatment for the whole tooling
Hardness reachs 48~52 HRC
Using the best material 42CrMo
Acute ,goose neck punch and single V die and 2V die
Wholesale press brake bending tools
| Material | 42CrMo=SCM440=42CrMo4=4140 |
| General Hardness | HRC47+/-2 |
| Surface Tolerance | 0.02MM |
| Sectioned | AVAILABLE |
| Supplying Brands | Amada,Tokyo,,LVD,YSD,Beyeler |
| OEM & ODM Service | AVAILABLE |
| Customize & Design Service | AVAILABLE |
The true standard length of the national diamond press brake die is:
Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.
The standard segmentation size is:
Upper model: 100 (left), 10,15,20,40,50,200,300,100 (right) =835mm (set)
