Product Details
Place of Origin: CHINA
Brand Name: SMART CNC
Certification: CE, ISO, TUV
Model Number: WE67K-4000MM
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: USD6000~USD100000
Packaging Details: Standard Export Packaging
Delivery Time: 35-40 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40 SETS/MONTHS
Slider Stroke (mm): |
150mm |
Throat Depth (mm): |
320mm |
Length Of Working Table (mm): |
4000mm |
Dimension: |
4000mm*1600mm*2600mm |
Material/Metal Processed: |
Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum, PVC |
Year: |
2022 |
Motor Power (kw): |
7.5 KW |
Machinery Test Report: |
Provided |
Function: |
Steel Metal Bending |
Hydraulic System: |
Bosch Rexroth Germany |
Bending Thickness: |
8mm |
Pump: |
Sunny |
Main Motor: |
Siemens Germany Brand |
Key Selling Points: |
Automatic |
Electrical: |
Schneider Electrical |
Ball Screw/ Polished Rod: |
HIWIN TAIWAN |
Control System: |
E21/DElEM/CYBELEC |
Slider Stroke (mm): |
150mm |
Throat Depth (mm): |
320mm |
Length Of Working Table (mm): |
4000mm |
Dimension: |
4000mm*1600mm*2600mm |
Material/Metal Processed: |
Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum, PVC |
Year: |
2022 |
Motor Power (kw): |
7.5 KW |
Machinery Test Report: |
Provided |
Function: |
Steel Metal Bending |
Hydraulic System: |
Bosch Rexroth Germany |
Bending Thickness: |
8mm |
Pump: |
Sunny |
Main Motor: |
Siemens Germany Brand |
Key Selling Points: |
Automatic |
Electrical: |
Schneider Electrical |
Ball Screw/ Polished Rod: |
HIWIN TAIWAN |
Control System: |
E21/DElEM/CYBELEC |
High-Precision DA53T CNC Hydraulic Press Brake Machine
Products Description
CNC Press Brake Machine
(1) Brand-new industry design combined with modern aesthetic concept, high-quality production technology, simple appearance. (2) Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate. (3) Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic crowning structure jointly ensure the bending precision of WE67K series Press Brakes. (4) Optimal ratio of parameters and core configuration ensure stable performance, and easy operation. (5) DA53T controller is equipped with standard 3+1 axis (Y1, Y2, X axis and W axis crowning). Additionally, the optional axis can be used for R axis or Z axis. At the same time, suitable die can be selected to realize bending processing of various workpieces with complex shapes. (6) The Press Brake adopts full closed-loop electro-hydraulic servo synchronous control technology. The position signal of the slide block is fed back to the CNC controller by the grating ruler on both sides, and then CNC controller controls the opening size of the synchronous valve and adjusts the quantity of the oil cylinder, so as to control the slide block (Y1,Y2) to run at the same frequency and always keep the parallel state to the working table. (7) CNC controller will automatically control the deflection compensation of the worktable, in order to achieve uniform angle on full length of the workpiece according to machine process state. (8) Using hydraulic crowning methodor mechanical crowning method, the workpiece with uniform precision over the whole length of the worktable can be obtained. The hydraulic crowning is composed of a group of oil cylinders in the lower working table, which can make the working table move relative to each other and form an ideal curve with convection to ensure the relation between the relative position of the sliding block and the bearing force remains unchanged. The compensation amount is determined by the CNC controller according to the thickness of the plate and the material characteristics.
Detailed Images
HYDRAULIC SYSTEM
■ Pipe Connection: * All pipe connection using the EMB from Germany Brand.
■Hydraulic System: * Adopt integrated hydraulic control system, more reliable &easy for maintenance. The hydraulic system is the from Bosch - Rexroth, Germany.

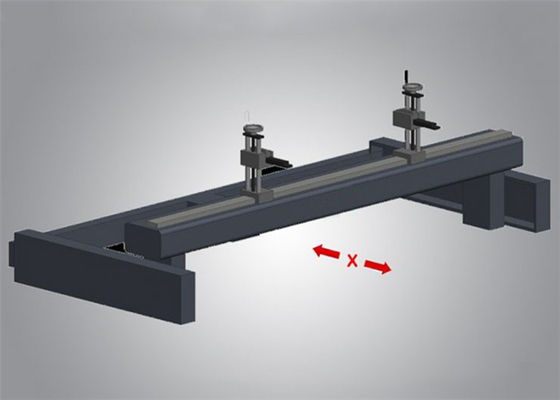

Backgauge
* High-precision backgauge device, ball screw and linear guider rail.
*Equipped with light-sensitive limit switch, improving limit accuracy.
*It is driven by steep motor and inverter with high positioning accuracy, unique designed synchronous transmission mechanism,reliable and stable.
Production Process
Product Parameters
Standard Configurations
Company Profile
WUXI SMART CNC EQUIPMENT GROUP CO.,LTD founded in 1988, occupying 120,000.000 square meter with more than 400 employees and is composed of highly trained and qualified machine operators and assembly technicians supported by staff of experience engineers and designers, and making it is one of the largest manufactures of sheet metal fabricating machinery in China. SMART CNC EQUIPMENT GROUP is a leader Manufacturer Factory of Metal Forging Machine. Such as CNC Pipe bending machine, Shearing Machine, Press Brake Machine, Plate Rolling Machine, Profile Bending Machine, Hydraulic Press Machine, Notching Machine, Iron Worker Machine, CNC Laser Cutting Machine, Roll forming machine etc. Meanwhile we're familiar with kinds of Processing Machines to help our clients choose the most suitable machine on the best quality by economically. We continued to strengthen research and development of new products, introduce the cnc technology which come from Italy and Germany. CNC press brake, cnc fiber laser cutting machine that we produced have achieve a real sense of CNC automatic control and improve the productivity greatly. To control the quality strictly and to ensure the customers satisfaction, the company achieved a product with strict control from design, manufacture process, inspection until the whole machine delivery, installation and service. SMART CNC will keep enterprising in the corporate spirit of "credit, collaboration, pragmatism and innovation" and sincerely hope to make progress together and jointly create brilliant with friends of all circles.
Packing and Shipping
Packing up to shipping standard
1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3.The out most is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.
