Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE,ISO,TUV
Model Number: 2-PB6-400/7000
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: 60000-90000 USD
Packaging Details: Wooden case
Delivery Time: 2 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/months
Application: |
Light Pole Manufacture |
Material: |
Q235A/Q235B/SS400 |
Type: |
Round,Dual-arm/Single-arm |
Height: |
6-14M |
Name: |
Competitive Prices Light Steel Pole Mould Production Line |
Color: |
Green |
Thickness: |
2.5mm-20mm |
Voltage: |
380V 50HZ 3Phase(Customized) |
Shape: |
Polygonal Or Conical |
Product Name: |
Light Pole Production Line |
Condition: |
New |
Surface Treatment: |
Hot Dip Galvanized |
Warranty: |
3 Years |
Automatic Grade: |
Automatic |
Application: |
Light Pole Manufacture |
Material: |
Q235A/Q235B/SS400 |
Type: |
Round,Dual-arm/Single-arm |
Height: |
6-14M |
Name: |
Competitive Prices Light Steel Pole Mould Production Line |
Color: |
Green |
Thickness: |
2.5mm-20mm |
Voltage: |
380V 50HZ 3Phase(Customized) |
Shape: |
Polygonal Or Conical |
Product Name: |
Light Pole Production Line |
Condition: |
New |
Surface Treatment: |
Hot Dip Galvanized |
Warranty: |
3 Years |
Automatic Grade: |
Automatic |
High Quality Street Light Pole Production Line Making Machine,Professional Street Light Pole Machine

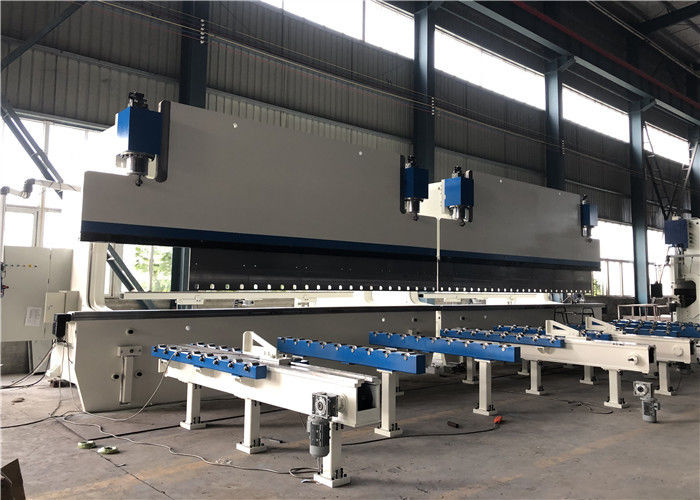

Two 2-PB6 Series in same specification are choosen as main machine with double motor linkage synchro-device, which may work together to process overlong workpiece or operate separately to increase production efficiency. Defection copensation device is fitted, too. Mechanic and fluid servos with mechanic slider are utilized in synchronous device. The stroke of upper slider and the position of rear apron are regulated quickly by machine and micro-regulated by hand with electronic NC display.
Performance
Product parameters
| Model |
Preesure (KN) |
Max bending width (mm) | Distance between cylinder | Throat depth | Ram stock | Max open height |
Motor (kw) |
Max bending thickness X Length (mm) |
| 300TX6000 | 6000 | 12000 | 5130 | 710 | 200 | 950 | 2X37 | 12X12000 |
| 400TX6000 | 8000 | 12000 | 5140 | 710 | 250 | 950 | 2X37 | 17X12000 |
| 500TX6000 | 10000 | 12000 | 5150 | 900 | 300 | 1100 | 2X45 | 19X12000 |
| 600TX6000 | 12800 | 12000 | 4000 | 1100 | 300 | 1200 | 2X55 | 20X12000 |
| 800TX6000 | 16000 | 12000 | 4000 | 1100 | 400 | 1200 | 4X37 | 23X12000 |
| 800TX7000 | 16000 | 14000 | 5030 | 1100 | 400 | 1200 | 4X37 | 22X14000 |
| 800TX8000 | 16000 | 16000 | 5030 | 1100 | 400 | 1200 | 4X37 | 20X16000 |
| 1200TX7000 | 24000 | 14000 | 4500 | 1600 | 400 | 1250 | 4X45 | 28X14000 |
| 1200TX7500 | 24000 | 15000 | 5000 | 1600 | 400 | 1250 | 4X45 | 27X15000 |
| 1200TX8000 | 24000 | 16000 | 5030 | 1600 | 400 | 1250 | 4X45 | 26X16000 |
| 1600TX8000 | 32000 | 16000 | 5210 | 1600 | 400 | 1250 | 4X55 | 29X16000 |
| 2000TX8000 | 40000 | 16000 | 5210 | 1600 | 400 | 1250 | 4X55 | 32X16000 |
| 2400TX8500 | 48000 | 17000 | 6000 | 1600 | 400 | 1250 | 4X75 |
35X17000 |
