Wuxi Smart CNC Equipment Group Co.,LTD sales@chinasmartcnc.com 86--13771480707
Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE,ISO,TUV
Model Number: PoleG500
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: 9000-15000 USD
Packaging Details: Wooden case
Delivery Time: 3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/months
Application: |
Light Pole Manufacture |
Material: |
Q235A/Q235B/SS400 |
Type: |
Round,Dual-arm,Production Set,Dual-arm/Single-arm |
Height: |
2m-18m |
Name: |
Competitive Prices Light Steel Pole Mould Production Line |
Color: |
Green |
Thickness: |
3-10mm |
After-sales Service Provided: |
Field Maintenance And Repair Service |
Power(w): |
46KW |
Product Name: |
Light Pole Production Line,solar Power Energy Steel Street Light Pole,First-class Service Light Pole Production Line For Overseas Market |
Weight: |
9.9T |
Automatic Grade: |
Automatic |
Application: |
Light Pole Manufacture |
Material: |
Q235A/Q235B/SS400 |
Type: |
Round,Dual-arm,Production Set,Dual-arm/Single-arm |
Height: |
2m-18m |
Name: |
Competitive Prices Light Steel Pole Mould Production Line |
Color: |
Green |
Thickness: |
3-10mm |
After-sales Service Provided: |
Field Maintenance And Repair Service |
Power(w): |
46KW |
Product Name: |
Light Pole Production Line,solar Power Energy Steel Street Light Pole,First-class Service Light Pole Production Line For Overseas Market |
Weight: |
9.9T |
Automatic Grade: |
Automatic |

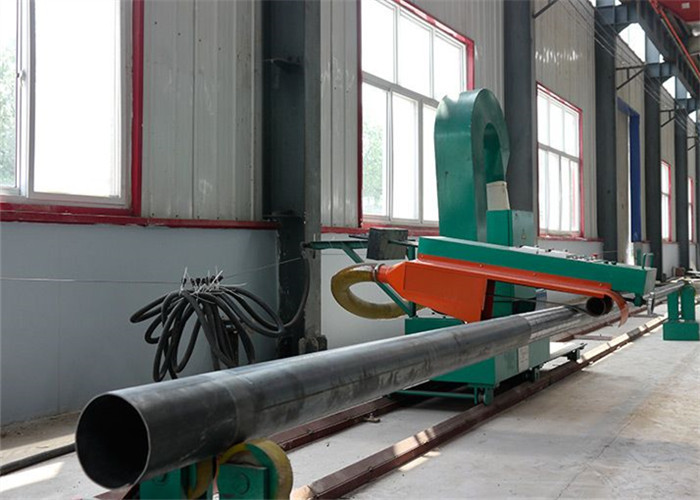

Automatic Street Lighting Pole Grinding Machine, Light Pole Production Line Machines 14meter
1). Parameters
| NO. | Model | Value | Unit | |
| 1 | Diameter of grinding steel tube | Ø320 | mm | |
| 2 | Length of grinding steel tube | 12000 | mm | |
| 3 | Steel tube run around speed | 5-10 | turn/min | |
| 4 | Grinding steel tube run speed | 1100 | mm/min | |
|
5 |
Measure | l | 13000 | mm |
| w | 2000 | mm | ||
| h | 800 | mm | ||
| 6 | Weight | 1500 | kg | |
2). Description of machine
This machine steel tube adopt self-run and the movement of the machine in order tomove the steel tube. the machine is fitted with grinding polishing bar, these grinding polishing bars will grind and polish the surface of steel tube quickly. it is speedy, efficient, saving workers and energy.it was the first choice for grinding and polishing every poles.
https://youtu.be/3Al9UMAnL6M?si=NkXmsu0htTN6j0tq
4). Spare parts supplier
| NO | Name | Specification | Qty | Supplier |
| 1 | Sand belt motor | 1.5 kw | 1set | Siemens beide |
| 2 | Walking adjustable motor | 0.55kw | 1set | Siemens beide |
| 3 | Rotating motor | 0.55 kw | 1set | Siemens beide |
| 4 | Dustless motor | 3 kw | 1set | Chinese famous brand |
| 5 | Electric components | 1set | Schneider,Siemens | |
| 6 | Reducer | bwd150 | 1set | Chinese famous brand |
| 7 | Rotating reducer | bwd150 | 1set | Chinese famous brand |
