Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE,ISO,TUV
Model Number: MS6-16×3200
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Packaging Details: Wooden case
Delivery Time: 2 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/months
Length: |
3200mm |
Motor: |
SIEMENS |
Max. Cutting Width (mm): |
0.1-6000 |
Control System: |
Delem DAC-360 |
Cutting Material: |
Metal Stainless Steel Carbon Steel Aluminum |
Application: |
Industrial Metal Hydraulic Shearing |
Length: |
3200mm |
Motor: |
SIEMENS |
Max. Cutting Width (mm): |
0.1-6000 |
Control System: |
Delem DAC-360 |
Cutting Material: |
Metal Stainless Steel Carbon Steel Aluminum |
Application: |
Industrial Metal Hydraulic Shearing |

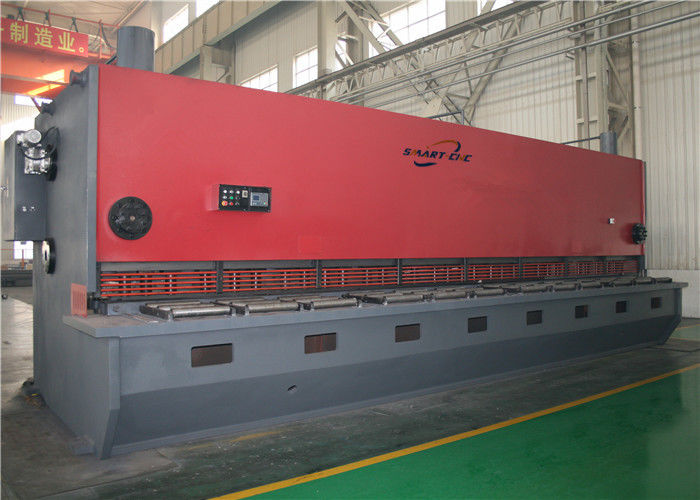

16x3200 Specification Sheet Metal Cnc Hydraulic Swing Beam Shearing Machine Price
Main Feature:
1. Streamlined design originated from EU, the machine frame is a whole through overall welding and annealing treatment.
2. Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems caused by leakage of hydraulic fluid.
3. Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.
4. Backgauge is adjusted by high-precision ball screw driven by E21S controller, during the process frequency convertor prevent positioning device horizontal swinging, significantly improving positioning accuracy.
5. Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end furnished with special material gasket to prevent aluminum or other soft materials from being imprinted.
6. Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when working.
7. Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high precision and more comfortable.
8. The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty material can be cutter easily.
9. Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy operation, practical and efficient.
10. Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.
E21S controller features:
1. Back guage and block control
2. Intelligent positioning
3. Stock counter
4 .Program memory up to 40 programs
5. Up to 25 steps per program
6. One side positioning Retract function
7. One key backup/ Restore of parameters
8. Chinese/ English MM/ Inch
