Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE,ISO,TUV
Model Number: SP-14000
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: 40000-60000 USD
Packaging Details: Wooden case
Delivery Time: 2 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/months
Application: |
Light Pole Manufacture |
Material: |
Q235A/Q235B/SS400 |
Height: |
6-14M |
Name: |
Light Pole Automatic Production Line |
Painting: |
Spraying |
Pole: |
Light Pole And High Mast |
Application: |
Light Pole Manufacture |
Material: |
Q235A/Q235B/SS400 |
Height: |
6-14M |
Name: |
Light Pole Automatic Production Line |
Painting: |
Spraying |
Pole: |
Light Pole And High Mast |

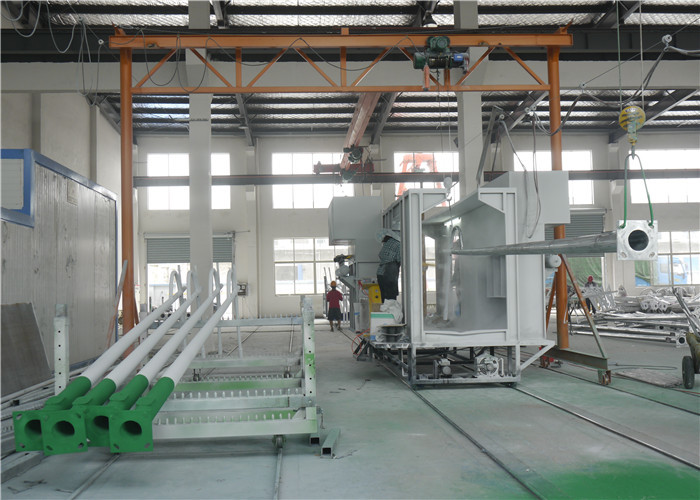

Electrostatic Spraying Production Line, Steet Light Pole Painting Line Machine, Lighting Pole Painting Machine
Characteristic:
the room was combined by cold steel rolling plate ,the structure was easy,and also easy for cleaning.color side was install the convulsions sets.at the same time we install the dustproof floodlight.it was very easy to operate spraying.
it adopt spelling installing.there is ripple plate outside.the surface of the oven was rigour,firm,nice,with good heat insulation.the temperature adopt general electrical machine to control,work in heat wind circulate.to keep the temperature in the furnace equality.and fully satisfy powder with 180℃±5℃ require of solidifying.
4.Major dispostions:
(1)powder room
(2)high-voltage electrostatic generator
(3)spray system(4 sets)
(4)powder pump recovery system
(5)0.5t hanging conveyor system(1set)
(6)traversing car (by electric or manual)
(7)bake oven curing system(electric heating,fuel type,coal type,gas type)
(8)electrical control system(1set)
| No | Name | Specification | Unit | Remarks | |
| 1 | Spraying length | 14 | m | ||
| 2 | Max spraying steel tube diameter | φ650 | mm | ||
| 3 | Max spraying steel tube weight | 500 | kg | ||
| 4 | Power | electric heating | 180 | kw/h | |
| fuel | 22 | kw/h | |||
| coal | 20 | kw/h | |||
| gas type | 20 | kw/h | |||
| 5 | Overall size | L | 15000 | mm | |
| W | 2100 | mm | |||
| H | 3200 | mm | Highest | ||
| 6 | Moveable sprayin room size | L | 4800 | mm | |
| W | 1300 | mm | |||
| H | 2400 | mm | |||
| 7 | weight | 20000 | kg | ||
