Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE,ISO,TUV
Model Number: PoleC-500
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: 9000-15000 USD
Packaging Details: Wooden case
Delivery Time: 2 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/months
Application: |
Light Pole Manufacture |
Material: |
Q235A/Q235B/SS400 |
Type: |
Round |
Height: |
5-12m |
Name: |
Light Pole Automatic Production Line |
Diamter: |
60-500mm |
Application: |
Light Pole Manufacture |
Material: |
Q235A/Q235B/SS400 |
Type: |
Round |
Height: |
5-12m |
Name: |
Light Pole Automatic Production Line |
Diamter: |
60-500mm |
CNC LIGHT POLE DOOR CUTTING MACHINE,Street Light Pole Door Cutting Machine,Auto Pole Dooring Cutting Machine

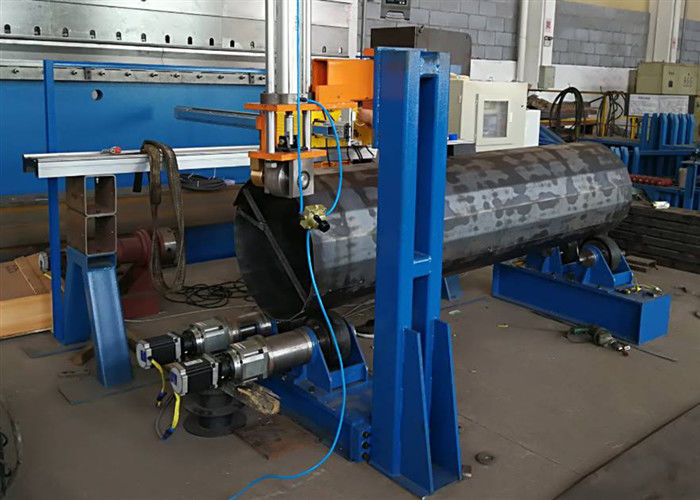

CNC LIGHT POLE DOOR CUTTING MACHINE, MODEL : 680/2000
Application:
It is suitable for conical pole, round pole, octagonal light pole and highmast door CNC cutting, . The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by computer.
The cutting source is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is much better then flame cutting.
Main parameter:
| No. | Item | Parameter |
| 1 |
Max. cutting length, X axis |
2000mm (for once stroke cutting) |
| 2 |
Rotation angle, A axis |
Any angle 0~360 degree |
| 3 | min pole diameter | 58mm |
| 4 | max outer diameter | 680mm |
| 5 | Max.length for pole | 14000mm |
| 6 | Max.thickness for highmast | 10mm |
| 7 | Plasma source |
Hypertherm Powermax 65 (Made in USA) POWERMAX65 |
| 8 | Suggestion thickness for making hole and quality cutting. | 10mm |
| 9 | Quality Cutting speed ,thickness 4mm | 4250mm/minute |
| 10 | Quality Cutting speed ,thickness 6mm | 2550mm/minute |
| 11 | Quality Cutting speed ,thickness 8mm | 1700mm/minute |
| 12 |
Max plasma edge cutting thickness(manual holding way) |
Base on Plasma source 14mm |
| 13 | Light pole door cutting time | for one normal light pole electrical door, the cutting time is about 30~40 seconds) |
| 14 | Main motor/Brand | Stepless motor/Chinese |
| 15 | CNC system | Si Dafeng(SF-2100S) |
| 16 | Nesting SOFTWARE | SmartNest |
| 17 | Control axis | 2 axis, X,A |
| 18 | CNC Plasma cutting torch | 1 set |
| 19 | Arc voltage height controller | HEAVTH HP105 |
| 20 | height DEVICE | Plasma Torch height moving device, 1set |
| 21 | Environmental temperature | 0-45℃ |
| 22 | Humidity | <90%, no condensation |
| 23 | Surroundings | Ventilation, no big shake |
| 24 |
Input voltage (Can be made according to buyer’s country voltage requirement.) |
Single phase,220V, 50HZ Three phases, 380V, 50HZ |
