Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE,ISO,TUV
Model Number: Y-16T
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: 9000-15000 USD
Packaging Details: Wooden case
Delivery Time: 2 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/months
Application: |
Light Pole Manufacture |
Thickness: |
5mm |
Length: |
12-16m |
Material: |
Q235A/Q235B/SS400 |
Name: |
Professional OEM Street Light Pole Line |
Pole Types: |
Conical Pole |
Application: |
Light Pole Manufacture |
Thickness: |
5mm |
Length: |
12-16m |
Material: |
Q235A/Q235B/SS400 |
Name: |
Professional OEM Street Light Pole Line |
Pole Types: |
Conical Pole |

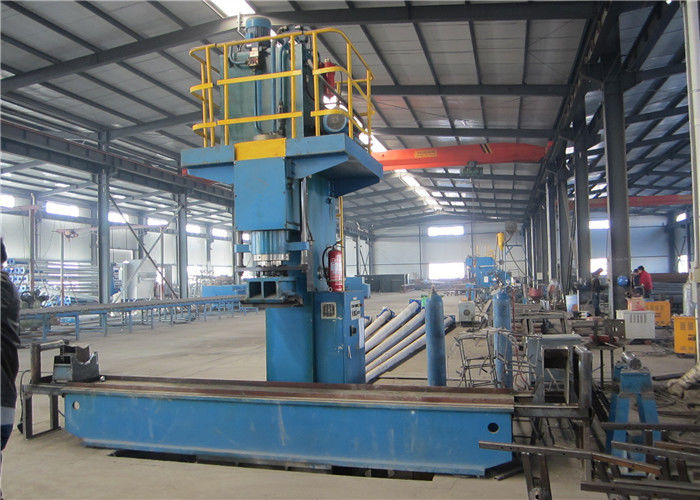

Y-16T Straightening Press, Street Light Pole Staighten Machine, Hydraulic Press For Straightening Street Light Pole
1.1 Lighting pole, material SS400,max. thickness 6mm,Max.length 15000mm,dia.60-500mm.
2. Main technical specifications:
| No. | Item | Specifications | Unit |
|
|
Nominal pressure | 160 | KN |
|
|
Max. stroke of pressing head | 350 | mm |
|
|
Depth of throat | 280 | mm |
|
|
Width of working table | 500 | mm |
|
|
Length of working table | 3000 | mm |
|
|
Distance between lower surface of piston to working table | 500 | mm |
|
|
Fast down | 50 | mm |
|
|
Working speed | 3.5 | mm |
|
|
Returning speed | 105 | mm |
|
|
Power of motor | 4 | KW |
|
|
Weight | 1,500 | KGS |
3. Features of machine
3.1 The precision and rigidity of machine is assured by whole welding structure, high frequency aging treatment to release the internal stress.
3.2 C-structure, once machining formed with high precision.
3.3 Adoption of hydraulic driven, firm structure, stable working and easy to operate.
3.4 The machine has an independent hydraulic system, adopting advanced logical valve with open system. It has features of tight structure, reliable performance, easy maintenance, no leakage.
5. Electrical system: the designing of electrical system adopt national standards GB5226-85, and the designing of circuit employs national standard JB2739-83, power supply 380V,50HZ. (AC)
The designing of machine complies with environmental protection requirements and national safety standard.
The machine has both inch and single operation ways.
4. Supply list
| No. | Name | Quantity | Remarks |
| 1 | Main machine | 1 set | |
| 2 | Seals | 1 set |
|
| 3 | Upper pressing head | 1 pic | |
| 4 | Technical documents | Full set | Operation manual, Quality certificate, Inspection report. Packing list each 1 copy |
| 5 | Anchor bolt | 1 set |
Used to erection of machine |
