Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE,ISO,TUV
Model Number: 1000W/1500w/2000w
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: 9000-15000 USD
Packaging Details: Wooden box
Delivery Time: 3 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/monts
Material: |
SS,MS |
Source: |
IPG Raycus |
Warranty Time: |
2 Years |
Dimensions: |
1200x600x1100mm |
Laser Source Brand: |
Raycus |
Usage: |
Welding Application |
Laser Type: |
Continuous |
Cooling Mode: |
Water Cooling |
Material: |
SS,MS |
Source: |
IPG Raycus |
Warranty Time: |
2 Years |
Dimensions: |
1200x600x1100mm |
Laser Source Brand: |
Raycus |
Usage: |
Welding Application |
Laser Type: |
Continuous |
Cooling Mode: |
Water Cooling |

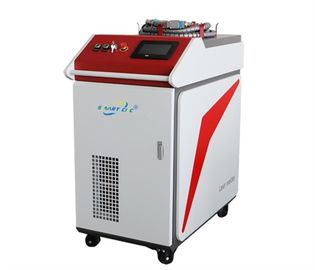

CNC Laser Welding Machine 1500w Fiber Laser Welding System for Metal
Brief Introduction:
The fiber continuous welding machine is a high-end, new type of welding method. It is generally composed of a "welding host" and a "welding table",it adopt fiber laser device as the laser generator,whole machine free of maintenance,no consumables,strong welding effect and more fine weld seam.
It can meet the needs of users in different industries according to the matching shape and workbench on the production site and the automation work,widely used for seam welding,stainless steel,alloy ,brass,galvanized sheet high precision welding .
Main Features and advantage :
1. High Efficiency,Speed is faster than the traditional welding speed by more than two times.
2.High Quality,Smooth welding seam,without subsequent grinding,saving time and cost.
3.Low Cost,80% to 90% power savings,processing costs are reduced by 30%
4.Flexible Operation,Easy operation,no need experience can do a good job.
5.Foreign beanches. we have setted our branches in USA, Germany, India...There will have more local service spots in the future.
|
Model |
1000SM |
1500SM |
2000SM |
|
Laser Running Mode |
Continuous/Modulate |
||
|
Input Voltage |
AC220V±10%, 50HZ/60HZ(Single Voltage) |
AC380V±10%, 50HZ/60HZ(Three Voltage) |
AC380V±10%, 50HZ/60HZ(Three Voltage) |
|
Beam Quality |
M2<1.1 |
M2<1.15 |
M2<1.2 |
|
Raycus Device Power |
1000W |
1500W |
2000W |
|
Line Width |
<4nm |
<4-5nm |
<5nm |
|
Laser Wavelength |
1070nm |
||
|
Beam-divergence Angle |
≤1.2mrad/m |
||
|
Welding Connector |
QBH |
||
|
Fiber Length |
10-15m |
||
|
Position |
Red Pointer |
||
|
Cooling System |
Industrial water chiller,circulation system, heat exchange titanium tube, over temperature alarm, flow protection, water level protection |
||
Here are 1000w and 1500w laser welding machine maximum welded capacity
|
1000W |
Stainless steel |
4mm |
|
Carbon steel /mild steel |
5mm |
|
|
Galvanized Sheet |
2mm |
|
|
Brass |
1mm |
|
|
Aluminum |
2mm |
|
1500W |
Stainless steel |
6mm |
|
Carbon steel /mild steel |
8mm |
|
|
Galvanized Sheet |
4mm |
|
|
Brass |
2mm |
|
|
Aluminum |
3mm |
Comparison
|
Difference |
Traditional Welding |
Yag Laser welding |
Fiber Laser Welding |
|
Heat effect to the workpiece |
very high |
low |
low |
|
Deformation of the workpiece |
big |
small |
small |
|
Bond strength to base metal |
general |
good |
very good |
|
After-treatment |
Polishing |
No need to polish, or rarely polished |
No need to polish, or rarely polished |
|
Welding speed |
general |
More than 2 times argon arc welding |
More than 2 times argon arc welding |
|
Applicable material |
stainless steel, carbon steel. galvanized sheet |
stainless steel, Carbon steel. galvanized sheet |
stainless steel, carbon steel. galvanized sheet |
|
Consumables |
More consumables |
Less consumables |
Less consumables |
|
Operation difficulty |
complex |
general |
simple |
|
Operator safety |
Unsafe |
Safety |
Safety |
|
Environmental protection impact |
Not environmentally friendly |
Environmental protection |
Environmental protection |
|
Welding fault tolerance |
it is good |
not good |
it is good |
|
Swing welding |
no |
no |
yes |
|
Spot width adjustable |
no |
no |
yes |
|
Welding quality comparison |
difference |
general |
Very good |
