Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE ISO TUV
Model Number: 2000W
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude
Delivery Time: 45days
Supply Ability: 50 sets/month
Cutting Area: |
1500*3000mm |
Cooling Mode: |
Water Cooling |
Laser Power: |
1500W |
Control System: |
Cypcut Control System |
Cutting Speed: |
0-40000mm/min |
Warranty Time: |
3 Years |
Brand: |
RAYCUS |
Table: |
Exchange |
Cutting Area: |
1500*3000mm |
Cooling Mode: |
Water Cooling |
Laser Power: |
1500W |
Control System: |
Cypcut Control System |
Cutting Speed: |
0-40000mm/min |
Warranty Time: |
3 Years |
Brand: |
RAYCUS |
Table: |
Exchange |

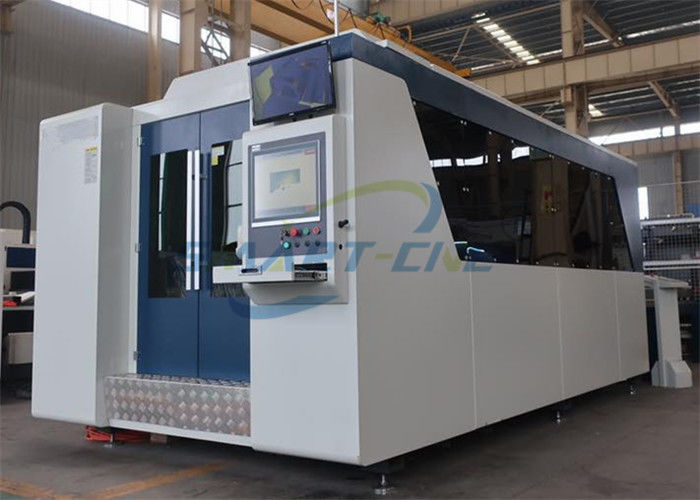

SML Series CNC Fiber Laser Cutting Machine
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
Specification for CNC Fiber Laser Cutting Machine
| Description | Unit | SML 3015 | SML 4015 | SML 4020 | SML 6020 | SML 6025 |
| Max.sheet size | mm | 3000x1500 | 4000x1500 | 4000x2000 | 6000x2000 | 6000x2500 |
| X-axis stroke | mm | 3050 | 4050 | 4050 | 6050 | 6050 |
| Y-axis stroke | mm | 1525 | 1525 | 2025 | 2025 | 2525 |
| Z-axis stroke | mm | 200 | 200 | 200 | 200 | 200 |
| X, Y axes positioning accuracy | mm/m | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| X, Y axes repetition accuracy | mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| X, Y axes max.speed | m/min | 120 | 120 | 120 | 120 | 120 |
| Laser power | W | 500/700/1000/2000/3000/4000/6000 | ||||
| Machine dimension | m | 8.8x3.9x2.0 | 11x4.5x2 | 11x5x2 | 15x5.8x2 | 5x6.2x2 |
| Fiber Laser Cutting Machine Technical Parameters | |
| Laser Type | Fiber laser |
| Laser Brand | IPG / Raycus |
| Laser Power | 500W (750W / 1000W /2000W/3000W/4000W optional) |
| Working area | 1500mmX3000mm 1300x2500mm 2000*4000mm Optional |
| Working Table | Fixed Working Table |
| Control System | PMAC full-closed loop servo control |
| Driving Mode | Double gear rack driving |
| Positioning Accuracy | 0.05mm |
| Protection System | Enclosure protection |
| Cutting Head | Precitec / Laser Mech / |
| Power Supply | AC380V ± 5% 50 / 60Hz |
| Total Power | 7KW~11KW |
| Standard Collocation |
Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc. |
| Software | CutMax Laser Cutting Software or PA8000 software, Metal Nesting Software |
| Supported Format |
PLT, DXF, BMP, AI, DST, DWG, etc. |
