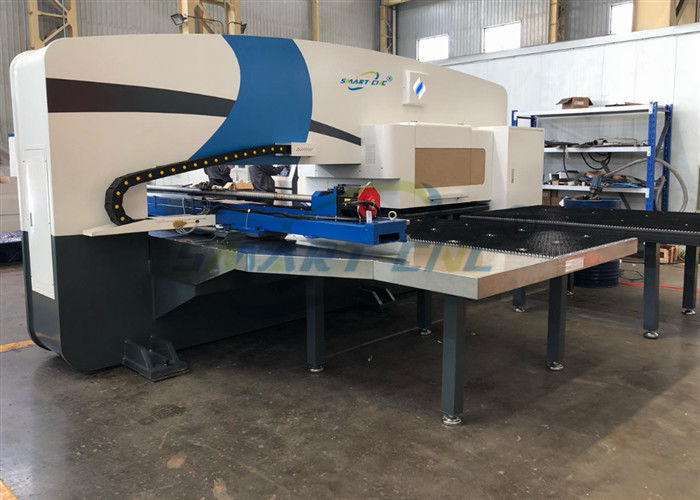

16 Station CNC Turret Punching Machine 30 Ton Environmentally Friendly

CNC Turret Punching Machine 30 Ton Pressure 1250×5000 Working Table For Cabinet Industry

One. Machine main technical parameter
1. O-type closed press frame special for servo punch press, holistic welding structure, stress relief from 2 times of tempering treatment. The strong rigidity and high tonnage ensure the stable accuracy for a long time, extend the service life of the machine and tools, and improve the positioning precision, reliability, and durability of the punch press.
2. Line guider and ball screw import from German Rexroth, ensure the accuracy and long service life.
3. The control system adopts the German Rexroth numerical control system, has realized the high speed, the high precision, the low noise, and non-blind area processing.
4. Germany Rexroth original servo motor and drive

Two. Machine content description
1.  Control system: Adopt Spain Fagor/Siemens cnc system, semi-closed loop control, cooperate with Estun numerical control punch servo module, which can realize four axis control at the same time, Equipped with USB, R232 communication interface which can realize the front desk, backstage programming.
Software:Adopts CNCKAD software can realize AutoCAD graphics automatically converts processing procedure, bring their own mould library management, automatic optimization of processing path, realize plank material automatic relocation, plate automatic relocation, no dead zone for processing; The operation is simple, and can realize one-click operation;
2.  Stamping subject:Fuselage is O type Steel welding, the whole pass by tempering treatment, make sure the equipment good appearance and long-term stability;
3.  Turret Organization:Adopt high strength nodular cast iron to cast into integral thick turret mould plate, thickness is 80mm, through heat treatment to get rid of internal stress, rigid good, precision stability, impact resistant ability good; greatly improving mould service life;
4.  Mould: adopts AMADA standard thick turret mould, convenient for daily maintenance and procurement;
5.  Motor/drive: Aston high-power servo motor and servo drive system, speed 3000 r/min, high feeding speed, high precision;
6.  Transport Ball Screws: Germany Ball Screws, attainability 5 grade precision;
7.  Guide Rail: Taiwan Linear Guide, With Wider Flange-type Slider to ensure the equipment operating more stability;
8.  Orientation Cylinder:Import Korea brand cylinder to achieve precise positioning of the purpose of locking;
9.  Reducer: Precision turbine worm reducer, with band-type brake function, reduce the impact to the servo motor after the mold high-speed operating, at the same time guarantee the turret high-speed positioning accuracy;
10.  Clamp:Adopt float type pneumatic clamp, can be together with plates float, avoid plates distortion;
11.  Working table:High quality brush steel ball mixed countertops, greatly reduces the friction plate movement, effective protection plate surface;
12.  Lubricating system:Adopt the automatic control system of oil station, according to the preset time, guide rail, screw etc main transmission mechanism can realize automatic centralized lubrication;
13.  Main electrical components:relays, photoelectric sensors, contactor, etc all adopt the Omron and Schneider brand, long-term guarantee the safety of the device;
14．Rotating station: Adopt the standard structure of worm and worm wheel rotating mechanism, the whole mechanism is processed by high precision grinding processing equipment, fully guarantee the centring of upper and lower mould after long-term rotation of rotating station, increase the service life of mould, effectively solve the difficulty of arbitrary Angle punching and trimming;
15.  Stamping main servo system: Adopting ESTON high-power servo motor, punch frequency up to 1900 times, punch force stable, using water cooling, the stability is higher.
Three. Configuration list
