Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE ISO TUV
Model Number: SYA-80
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude
Supply Ability: 50 sets/months
Pressure: |
80ton |
Delivery Time: |
45days |
Warranty Time: |
Two Years |
Table: |
900x500mm |
Hydraulic: |
Italy |
Types: |
CNC Types |
Pressure: |
80ton |
Delivery Time: |
45days |
Warranty Time: |
Two Years |
Table: |
900x500mm |
Hydraulic: |
Italy |
Types: |
CNC Types |
Features:
Universal high performance presses are widely used in the fields of aeronautics, auto, agriculture machines, electric machines, apparatuses and meters, medical equipments, electrical home appliance and hardware.
1. Welded frame with quality steel which means good rigidity.
2. Square figure long guide with six friction faces makes abrasion resistant and punching precision.
3. Hydraulic overload protector has sensitive response and reliable motion, which can protect the die when overloading
4. Combined pneumatic clutch and brake are made of friction material, which means long service life.
5. Closed gear-driven, dipped in lube, which drives stably with low noise.
6. Slide with counter balancer, which will eliminate the clearance and improve the stability and precision.
7. Intermittent auto lubrication makes every point get fine and safe lubrication. Thus, long service life is saved.
8. PLC electric control system is safe and reliable
9. Air cushion, photo guard, auto feeder, speed die changing and variable-speed device are optional.
Standard Equipments:
1) Wet clutch
2) PLC
3) Hydraulic overload protecting pump
4) Touch screen
5) Cam controller
6) Die height adjusted motor (JH21-60 and upon models)
7) Auto lubrication system

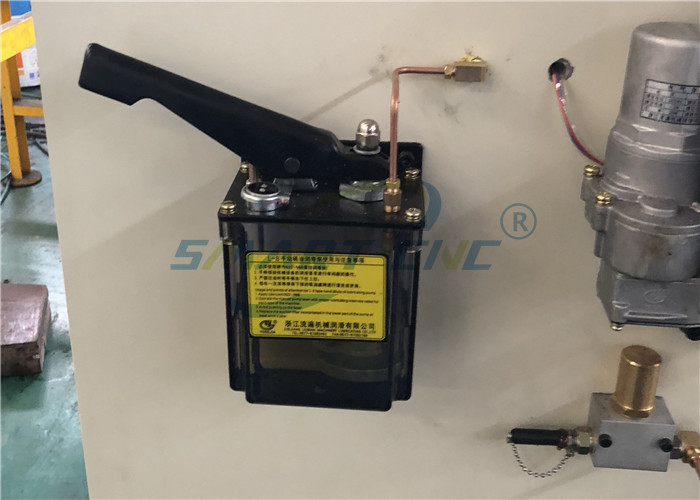

8) Manual lubrication system
9) Double hand control panel
10) Electronic crankshaft angle indicator
11) Predetermined counter
12) Balance cylinders for slide and upper die
13) Work light
14) Joint for air
15) Joint for miss-feeding
16) Absorbing pads
Optional Equipments:
1) Dry clutch
2) Light curtain
3) Foot pedal
4) Die cushion
5) Inverter
6) Variable speed motor
7) Auto feed shaft
8) Die quick change device
| Specification | Unite | SYA-25 | SYA-35 | SYA-45 | SYA-60 | |||||
| Model | V | H | S | V | H | V | H | V | H | |
| Capacity | Ton | 25 | 35 | 45 | 60 | |||||
| Rated tonnage point | mm | 3.2 | 1.6 | 3.2 | 3.2 | 1.6 | 3.2 | 1.6 | 4 | 2 |
| Speed changing | S.p.m | 60-140 | 130-200 | 60-120 | 40-120 | 110-180 | 40-100 | 110-150 | 35-90 | 80-120 |
| Stable speed | S.p.m | 110 | 110 | 85 | 75 | 65 | ||||
| Stroke | mm | 70 | 30 | 80 | 70 | 40 | 80 | 50 | 120 | 60 |
| Die height | mm | 195 | 215 | 190 | 220 | 235 | 250 | 265 | 10 | 340 |
| Slide adjustment | mm | 50 | 50 | 55 | 60 | 75 | ||||
| Slide area | mm | 300×230×50 | 360×250×50 | 400×300×60 | 500×360×70 | |||||
| Bolster area | mm | 680×300×70 | 800×400×70 | 850×440×80 | 900×500×80 | |||||
| Shank hole | mm | Ø38.1 | Ø38.1 | Ø38.1 | Ø50 | |||||
| Main motor | Kw.p | 3.7×4 | 3.7×4 | 5.5×4 | 5.5×4 | |||||
| Slide adjust device | HP | manual operation | ||||||||
| Air pressure | Kg/cm² | 6 | 6 | 6 | 6 | |||||
| Presses precision | GB/JIS 1class | |||||||||
| Presses dimension | mm | 1280×850×2200 | 1380×900×2400 | 1600×950×2500 | 1600×1000×2800 | |||||
| Presses weight | Ton | 2.1 | 3 | 3.8 | 5.6 | |||||
| Die cushion capacity | Ton | - | 2.3 | 2.3 | 3.6 | |||||
| Stroke | mm | - | 50 | 50 | 70 | |||||
| Die cushion effective area | mm² | - | 300×230 | 300×230 | 350×300 | |||||
