Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE ISO TUV
Model Number: QC12K-12×3200
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude
Supply Ability: 50 SETS/MONTH
Max Thickness: |
12mm |
Width: |
3200mm |
Motor: |
Japan |
Pump: |
Rexroth |
Controller: |
ELGO |
Warranty: |
2 Years |
Max Thickness: |
12mm |
Width: |
3200mm |
Motor: |
Japan |
Pump: |
Rexroth |
Controller: |
ELGO |
Warranty: |
2 Years |

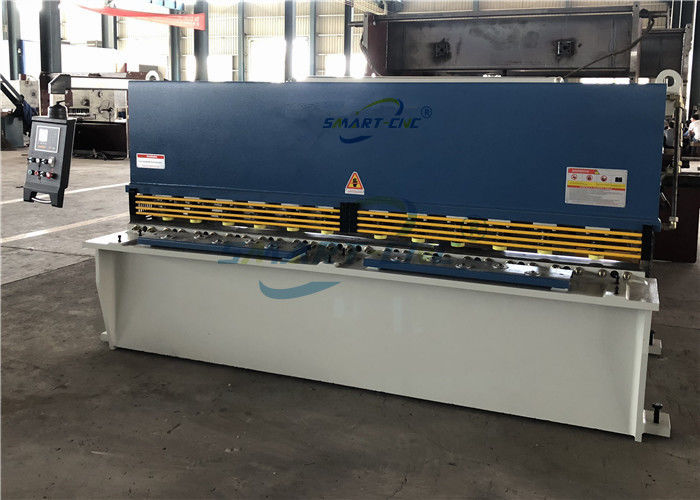

Hydraulic Swing Beam Shear Machine 12mm 3200mm Cnc Metal Cutting Machine Plate Cutting Machine
1. Hydraulic dive, swing beam. Whole weld knife rest works smoothly and quickly, and is prompt by
accumulator Nitrogen cylinder.
2. Possessing a speed blades gap adjusting device, permit to adjust the blades gap.
3. The stroke and frequency of shearing can be controlled. The machine has the function of single
shearing and automatic continuous shearing.
4. The stroke and frequency of shearing can be controlled. The machine has the function of single
shearing and automatic continuous shearing.
5. After inputting precomputed data, the back gauge can be automatically moved, positioned and
stopped.
6. The vertical gripper of intellect position is controlled by pneumatic system.
MAIN SPECIFICATIONS
| Type | Cutting thickness | Cutting width | Shear angle (°) |
Material strength (KN/cm) |
Back gauge range (mm) |
Strokes (N/Min) |
Motor power (KW) |
Overall dimension (L×W×H) (mm) |
| 4x2000 | 4 | 2000 | 1°30′ | ≤450 | 20～500 | 14 | 5.5 | 3040×1550×1550 |
| 4x3200 | 4 | 3200 | 1°30′ | ≤450 | 20～500 | 12 | 5.5 | 3840×1550×1550 |
| 4x4000 | 4 | 4000 | 1°30′ | ≤450 | 20～600 | 10 | 5.5 | 4600×1700×1700 |
| 4x6000 | 4 | 6000 | 1°30′ | ≤450 | 20～800 | 5 | 7.5 | 6460×2100×2200 |
| 6x2500 | 6 | 2500 | 1°30′ | ≤450 | 20～500 | 14 | 7.5 | 3040×1710×1620 |
| 6x3200 | 6 | 3200 | 1°30′ | ≤450 | 20～500 | 12 | 7.5 | 3840×1710×1620 |
| 6x4000 | 6 | 4000 | 1°30′ | ≤450 | 20～600 | 9 | 7.5 | 4620×1850×1700 |
| 6x5000 | 6 | 5000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 3140×1710×1620 |
| 6x6000 | 6 | 6000 | 1°30′ | ≤450 | 20～800 | 5 | 11 | 6480×2100×2300 |
| 8x2500 | 8 | 2500 | 1°30′ | ≤450 | 20～500 | 11 | 7.5 | 3040×1700×1700 |
| 8x3200 | 8 | 3200 | 1°30′ | ≤450 | 20～500 | 8 | 7.5 | 3860×1700×1700 |
| 8x4000 | 8 | 4000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 4640×1700×1700 |
| 8x5000 | 8 | 5000 | 1°30′ | ≤450 | 20～600 | 8 | 7.5 | 5400×2400×2000 |
| 8x6000 | 8 | 6000 | 1°30′ | ≤450 | 20～800 | 8 | 11 | 6480×2100×2350 |
| 10x2500 | 10 | 2500 | 1°30′ | ≤450 | 20～500 | 10 | 11 | 3040×1800×1700 |
| 10x3200 | 10 | 3200 | 1°30′ | ≤450 | 20～500 | 10 | 11 | 3860×2000×1700 |
| 10x4000 | 10 | 4000 | 1°30′ | ≤450 | 20～600 | 10 | 11 | 4650×2100×2000 |
| 10x6000 | 10 | 6000 | 1°30′ | ≤450 | 20～800 | 10 | 15 | 6500×2100×2300 |
| 12x2500 | 12 | 2500 | 2° | ≤450 | 20～600 | 12 | 18.5 | 3140×2050×2000 |
| 12x3200 | 12 | 3200 | 2° | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 12x4000 | 12 | 4000 | 2° | ≤450 | 20～600 | 10 | 18.5 | 4680×2150×2100 |
| 12x5000 | 12 | 5000 | 2° | ≤450 | 20～600 | 6 | 18.5 | 3240×1900×1900 |
| 12x6000 | 12 | 6000 | 2° | ≤450 | 20～1000 | 5 | 18.5 | 6900×2600×2700 |
| 16x2500 | 16 | 2500 | 2°30′ | ≤450 | 20～600 | 10 | 18.5 | 3140×2150×2000 |
| 16x3200 | 16 | 3200 | 2°30′ | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 16x4000 | 16 | 4000 | 2°30′ | ≤450 | 20～800 | 10 | 18.5 | 4650×2150×2200 |
| 16x5000 | 16 | 5000 | 2° | ≤450 | 20～1000 | 6 | 18.5 | 5900×2600×2700 |
| 16x6000 | 16 | 6000 | 2° | ≤450 | 20～1000 | 5 | 22 | 6900×2700×2700 |
| 20x2500 | 20 | 2500 | 3° | ≤450 | 20～800 | 8 | 22 | 3440×2300×2500 |
| 20x3200 | 20 | 3200 | 3° | ≤450 | 20～800 | 8 | 22 | 4150×2350×2700 |
| 20x4000 | 20 | 4000 | 3° | ≤450 | 20～1000 | 5 | 22 | 4850×2600×2400 |
| 20x6000 | 20 | 6000 | 3° | ≤450 | 20～1000 | 4 | 22 | 6700×3000×3000 |
| 25x2500 | 25 | 2500 | 3° | ≤450 | 20～1000 | 8 | 37 | 3200×2700×2900 |
| 25x3200 | 25 | 3200 | 3° | ≤450 | 20～1000 | 5 | 37 | 4200×2400×2500 |
| 30x2500 | 30 | 2500 | 3° | ≤450 | 20～1000 | 4 | 37 | 3300×2900×2000 |
| 30x3200 | 30 | 3200 | 3°30′ | ≤450 | 20～1000 | 4 | 40 | 4200×2500×2600 |
| 40x2500 | 40 | 2500 | 4° | ≤450 | 20～1000 | 3 | 75 | 3200×3300×3200 |
| 40x3200 | 40 | 3200 | 4° | ≤450 | 20～1000 | 3 | 90 | 4300×3300×3000 |
Swing beam shear standard configuration:
1 Hydraulic swing structures, blade beam nitrogen cylinder return.
2 Clip-and -sleeve pipe system.
3 Manual blade clearance adjustment
4 Standard front guard
5 Safe pedal.
6 with cutting stainless steel blades(material 6CrW2Si).
7 Valve:Rexroth, Germany
8 Motor:Siemens,Germany.
9 Pump:SUNNY,USA.
10 Electrical element:Schneider.
11 NOK Japan layer seals for main cylinders.
12 Estun E21S system control.
13 Three emergency stop.
14 Electrical cabinet with switch power outage.
15Optional controller E200,DAC360S
