Automatic Section Pipe Bending Machine Reliable Microcomputer Control

Product Details

Place of Origin: China

Brand Name: SMART CNC

Certification: CE ISO TUV

Model Number: W24-30

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude

Delivery Time: 45days

Supply Ability: 30 Sets/month

Get Best Price
Product Details
Highlight:

steel pipe bending machine

,

angle iron bender machine

Diameter:
76mm
Bending Speed:
5-6
Delivery Time:
30 Days
Valve:
Hoerbiger
Motor:
Japan
Angle Steel:
40x5
Diameter:
76mm
Bending Speed:
5-6
Delivery Time:
30 Days
Valve:
Hoerbiger
Motor:
Japan
Angle Steel:
40x5
Product Description
Section Bending Machine Pipe Profile Bending Machine Vertical Section Aluminum Profile Bending Machine

Introduction

Hydraulic 3 roller profile/ section bending machine, which mainly use in various steel profile bending.

It can roll " O " spiral and etc. shape work pieces. It is widely in petrol, chemical, shipyard, metal working

and machine manufacturing industries.Three rollers are main droved,can do the prebending,through

adjusting the guide rollers.it is easy to correct the deformation from the bending process.



Features

(1) Uses the microcomputer control, automatic bending;

(2) Safety: the emergency stop button on the bending arm;

(3) Dialogue operation, easy to study and understand;

(4) High pipe-bending precision up to ±0.15°;

(5) 1000 groups pipe-bending information storage, all angles work forms a coherent whole;

(6) The mandrel automatically in and out, saving much time;

(7) Suitable for bending steel pipe, stainless steel pipe, copper pipe, aluminum pipe, etc;

(8) Can install auxiliary push die, low returning-core function, can bend thin pipes;

(9) Special fitting: special mold, anti-wrinkle board, auxiliary push installation, etc.



Quality guarantee

(1) Factory guarantees machinery well packed and testing qualified before shipment.

(2) Factory guarantees all the goods are brand-new; no defects for the specifications or materials used.

(3) 1-year quality warranty after customer accepts the inspection for machinery’s trial operation.



Section Bending Machine Parameters

Model W24S-6 W24S-16 W24S-30
Max. Anti-Winding Cass-Section Molds (cm3) 6 16 30
Winding Speed (m/min) 4 3 3
Yield Strength (MPa) 250

Angle Steel

Internal Winding

Max. Cross – Section(mm) 40*5 70*8 75*10
Min. Winding Die. (mm) 800 1000 1200
Min. Cross - Section(mm) 20*3 30*3 35*3
Min. Winding Die. (mm) 400 550 560

Angle Steel

Eternal Winding

Max. Cross – Section(mm) 50*5 75*10 90*10
Min. Winding Die. (mm) 800 1000 1100
Min. Cross - Section(mm) 20*3 30*3 35*3
Min. Winding Die. (mm) 400 550 500

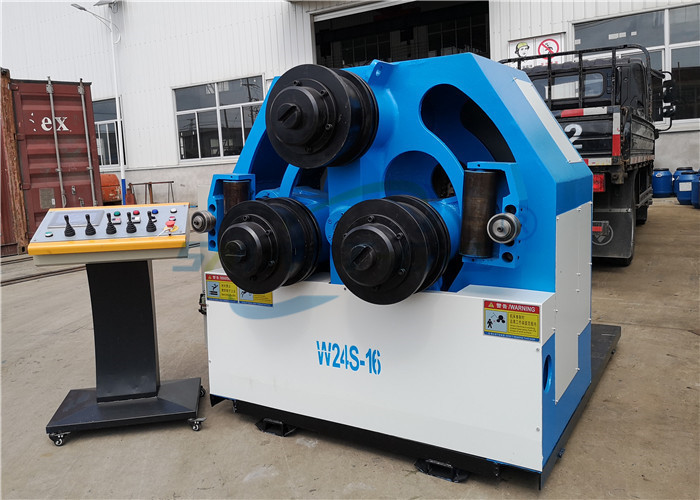

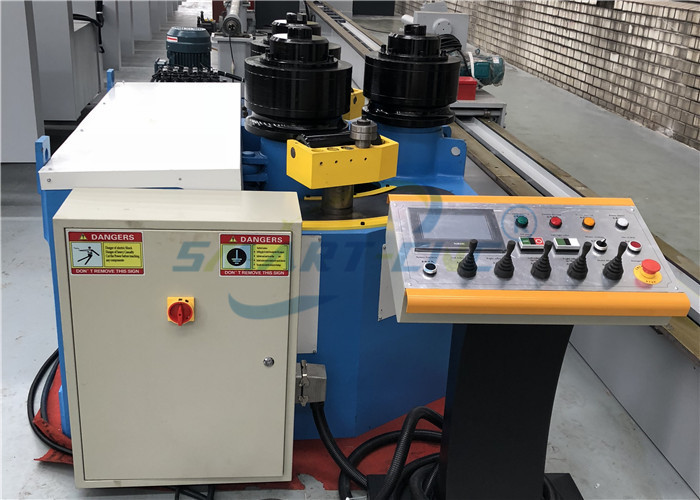

Automatic Section Pipe Bending Machine Reliable Microcomputer Control 0Automatic Section Pipe Bending Machine Reliable Microcomputer Control 1Automatic Section Pipe Bending Machine Reliable Microcomputer Control 2Automatic Section Pipe Bending Machine Reliable Microcomputer Control 3Automatic Section Pipe Bending Machine Reliable Microcomputer Control 4
