Wuxi Smart CNC Equipment Group Co.,LTD sales@chinasmartcnc.com 86--13771480707
Product Details
Place of Origin: China
Brand Name: SMART CNC
Certification: CE ISO TUV
Model Number: RGHK-1500×4000
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude
Delivery Time: 25 days
Supply Ability: 50 sets/month
Thickness: |
05-6mm |
Aixs: |
4 Axis |
Length: |
4000mm |
Width: |
1500mm |
Motor: |
Japan |
Servo: |
Taiwan |
Wire: |
Korea |
Types: |
Vertical |
Thickness: |
05-6mm |
Aixs: |
4 Axis |
Length: |
4000mm |
Width: |
1500mm |
Motor: |
Japan |
Servo: |
Taiwan |
Wire: |
Korea |
Types: |
Vertical |

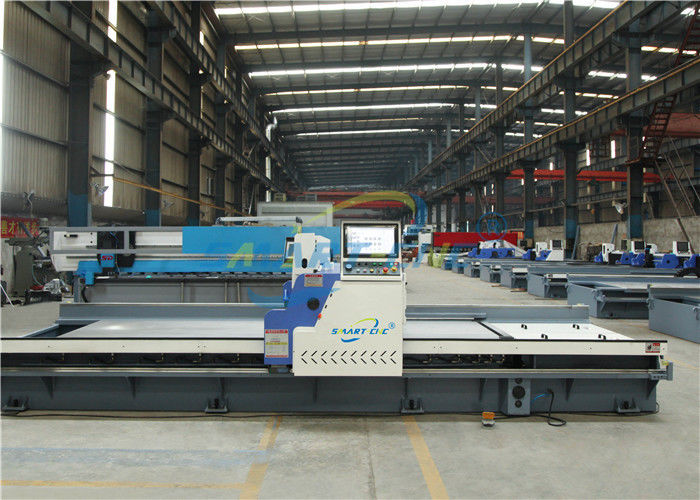

1500×4000 CNC Stainless Steel Sheet Metal Surface For CNC V-Cutting Machine, CNC Stainless Steel V-Cutting Machine
Features:
1. Lower maintenance cost
2. Shorten training time
3. Avoid collision
4. In any axial direction can be installed with grating ruler
5. Responsive time for acceleration/deceleration: 0.5US
6. High-speed positioning of main shaft
7. With retraction function
8. Intellective fault alarm and troubleshooting function
9. PLC interrupt function: fixed scan time 10ms
10. All axes open-loop control with feedback function
11. The servo motor torque can be read and displayed
12. The acceleration and deceleration control curve is superior to other numerical control.
13. With DC power input module
14. With SSR external input signal plate
15. Easy wiring, low wiring cost
2. Main specification
| No |
|
3200 | 4000 | 5000 | 6000 | Unit | |
| 1 | The width of grooving | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 | mm | |
| 2 | The length of length | 3200 | 4000 | 5000 | 6000 | mm | |
| 3 | The thickness of grooving(Stainless steel) | 4 | 4 | 4 | 4 | mm | |
| 4 | The Min thickness of plate | 0.4 | 0.4 | 0.4 | 0.4 | mm | |
| 5 | Min side distance V | 8 | 8 | 8 | 8 | mm | |
| 6 | X axis working speed | 70 | 70 | 70 | 70 | m/min | |
| 7 | X axis return speed | 80 | 80 | 80 | 80 | m/min | |
| 8 | Y1 axis max distance | 1250 | 1250 | 1250 | 1250 | mm | |
| 9 | Y1 axis move speed | 20 | 20 | 20 | 20 | m/min | |
| 10 | Y1 axis resolution | 0.001 | 0.001 | 0.001 | 0.001 | mm | |
| 11 | Repeat positioning accuracy | ±0.01 | ±0.01 | ±0.01 | ±0.01 | mm | |
| 12 | Z axis resolution | 0.001 | 0.001 | 0.001 | 0.001 | mm | |
| 13 | Repeat positioning accuracy | ±0.01 | ±0.01 | ±0.01 | ±0.01 | mm | |
| 14 | Motor power | X axis | 5.5 | 5.5 | 5.5 | 5.5 | KW |
| Y1.Y2.Z axis | 1 | 1 | 1 | 1 | KW | ||
| 15 | Machine size | length | 5430 | 6230 | 7230 | 8230 | mm |
| width | 2230/2480 | 2230/2480 | 2230/2480 | 2230/2480 | |||
| high | 1560 | 1560 | 1560 | 1560 | |||
| 15 | Machine weight | 7500/8000 | 8000/8600 | 9000/9800 | 10000/11000 | KGS | |
3. Configuration
| No | Name | Brand |
| 1 | CNC system | Japan |
| 2 | Hydraulic system | Taiwan famous brand |
| 3 | Frequency converter | Mitsubishi,Japan |
| 4 | Servo motor | Mitsubishi,Japan |
| 5 | Seal ring | VALQUA,Japan |
| 6 | Motor | SEW,Germany |
| 7 | Air switch | Schneider |
| 8 | Contactor | Schneider |
| 9 | Breaker and button | Schneider |
| 10 | Relay | Schneider |
| 11 | Blades | KORLOY,Korea |
| 12 | Linear guide | HINWIN, Taiwan |
| 13 | Wire |
IGUS, Germany |
