2500mm Plate Bending Rolling Machine , Tank Rolling Machine 3 / 4 Roller

Product Details

Place of Origin: China

Brand Name: SMART CNC

Certification: CE ISO TUV

Model Number: W12-10×2500

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude

Delivery Time: 50days

Supply Ability: 50 SETS/Months

Get Best Price
Product Details
Highlight:

hydraulic plate rolling machine

,

metal plate rolling machine

Max Thickness:
10mm
Width:
2500mm
Pre-bending:
Yes
Function:
Bending Cone
Delivery Time:
35 Days
Electrical:
China
Hydraulic:
Taiwan
Max Thickness:
10mm
Width:
2500mm
Pre-bending:
Yes
Function:
Bending Cone
Delivery Time:
35 Days
Electrical:
China
Hydraulic:
Taiwan
Product Description

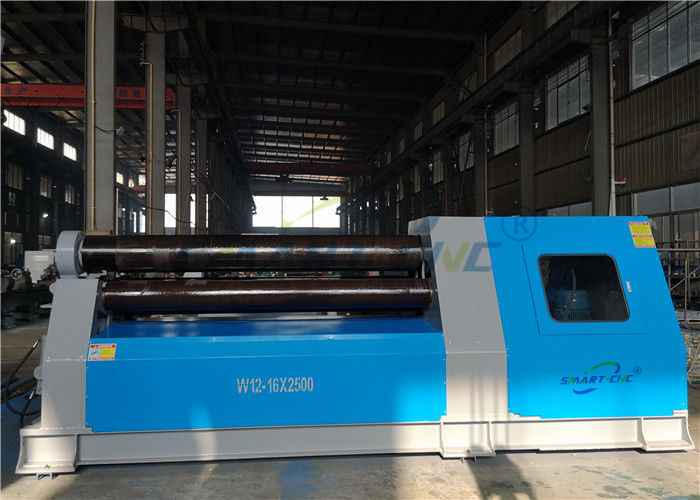

W12-12*2500 W11 3 4 Roller Plate Bending Machine Cone Rolling Machine Tank Rolling Machine Flange Rolling Machine



Main Features:



The machine has pre-bending function ,can place the plate one time without any position change and achieve the pre-bending and rolling function together.



The machine has been imposed with independent operation panel, and has safe-link-lock system. It has the character of high-technology, integrated-function, high-precision and easy-operation, it is ideal plate-rolling equipment and been widely used in all industrial areas for all plate cylinder, arc and cone rolling required fields.



The machine is composed by four working rollers , left-right machine body, basement, dump-part, transmission part, sensor part, hydraulic system and electronical system, tempering treatment after rough production, HB220-260.





The working roller is the main element of the machine under the material of #45 steel , in the finishing treatment procedure ,we use HRC40-45 intermediate



frequency quenching to obey strictly all the technical requirement of the working roller produce to guarantee the integrated quality of the machine.



The upper roller and the bottom working roller are well act as main drive. The vertical movement of the bottom roller and two side rollers are all controlled by hydraulic ,the vertical movement is digitally displayed and calculated by CNC, levelly automatically, the synchronization precision is ±0.2MM, The dumping equipped also use hydraulic drive ,in the end of up roller ,there are balance structure , can take out the rolled working pieced easily.



The basement and machine body are use wielded structure, and strictly done annealing treatment to reduce the inner stress and has enough strength and rigidity and guarantee the normal working when all full-loaded.





Hydraulic System



The hydraulic system can achieve below function: drive the hydraulic-cylinder to make the bottom roller make vertical movement, and drive two side roller make arc movement, control the dumping cylinder to make up-and-down movement.



Through the Electro-hydraulic directional control valve ,can control the bottom roller up-and-down movement and also the arc movement of two side rollers. Through hydraulic-control non-return valve ,the working roller can stay at any position.



Dumping cylinder’s return circuit has one-way throttle valve, can adjustment suitably for the working structure speed.



The all hydraulic system has reasonable design , reliable in working and equipped with high-precision oil and oil filter to ensure the clean of the hydraulic system oil. The pipe system is reasonable placed, convenient in operation and flexible in action to guarantee the non leakage of the system.



The electronic control system





C.1 Structure



The system use touth-screen system and has adopt JAPAN OMRON illigent PLC and the input and output module.After all clients’ usage practice ,they have the good stability and strong anti-interference and anti-seismic ability.



The sensor adopt high-precision encode to ensure the position precision and monitor all rollers working position. The high voltage parts adopt all the components from China joint famous enterprise has long-term usage and seldom broken character.





C.2 Control system function



A. To control the working roller synchronization movement automatially



Control the bottom roller vertical movement synchronization, the synchronization precision is ±0.2MM.



Control two side rollers synchronization movement,the synchronization precision is ±0.2MM.



B. display real-time date and all rolling information and plate-rolling information.



The bottom roller’s two side has real time date.



The two sides of side rollers has real time date.



C. control system has warning messenger to timely know what happened for convenient operation and maintenance.



TECHNICAL PARAMETERS

Model

Max.bending thickness

(mm)

Pre-bending thickness

(mm)

Max.working length of rolls

(mm)

Yield limit

(Mpa)

Top roller diameter

(mm)

Bottom roller diameter

(mm)

Side roller diameter

(mm)

Main power

(KW)

W12-4X2000 4 3.5 2050 245 160 140 120 3
W12-6X2000 6 5 2050 245 190 170 150 4
W12-8X2000 8 6.5 2050 245 210 190 170 5.5
W12-10X2000 10 8 2050 245 230 210 190 7.5
W12-12X2000 12 10 2050 245 270 250 210 11
W12-16X2000 16 13 2050 245 300 270 220 11
W12-20X2000 20 16 2050 245 330 300 240 11
W12-25X2000 25 20 2050 245 360 330 250 15
W12-30X2000 30 25 2050 245 390 360 300 18.5
W12-35X2000 35 28 2050 245 430 390 330 22
W12-40X2000 40 32 2050 245 460 420 360 30
W12-45X2000 45 36 2050 245 510 460 390 37
W12-50X2000 50 40 2050 245 550 510 420 45
W12-4X2500 4 3.5 2550 245 190 170 150 4
W12-6X2500 6 5 2550 245 210 190 170 5.5
W12-8X2500 8 6.5 2550 245 230 210 190 7.5
W12-10X2500 10 8 2550 245 270 250 210 11
W12-12X2500 12 10 2550 245 300 270 220 11
W12-16X2500 16 13 2550 245 330 300 240 11
W12-20X2500 20 16 2550 245 360 330 250 15
W12-25X2500 25 20 2550 245 390 360 300 18.5
W12-30X2500 30 25 2550 245 430 390 330 22
W12-35X2500 35 28 2550 245 460 420 360 30
W12-40X2500 40 32 2550 245 510 460 390 37
W12-45X2500 45 36 2550 245 550 510 420 45
W12-4X3000 4 3.5 3100 245 210 190 170 5.5
W12-6X3000 6 5 3100 245 230 210 190 7.5
W12-8X3000 8 6.5 3100 245 270 250 210 11
W12-10X3000 10 8 3100 245 300 270 220 11
W12-12X3000 12 10 3100 245 330 300 240 11
W12-16X3000 16 13 3100 245 360 330 250 15
W12-20X3000 20 16 3100 245 390 360 300 18.5
W12-25X3000 25 20 3100 245 430 390 330 22
W12-30X3000 30 25 3100 245 460 420 360 30
W12-35X3000 35 28 3100 245 510 460 390 37
W12-40X3000 40 32 3100 245 550 510 420 45
W12-50X3000 50 40 3100 245 610 560 480 55
W12-60X3000 60 48 3100 245 670 620 520 75

Description and specification given in this catalogue are subject to modification without notice.
